Version: 8.4

Error reference

An error event must reference an error defined in the process. The referenced error must have a defined error code. To fix this problem, open the Error group in the properties panel, select or create an error, and specify its error code.

Camunda 8.2 and later support catch-all events and do not require an error reference.

No error selected

No error selected

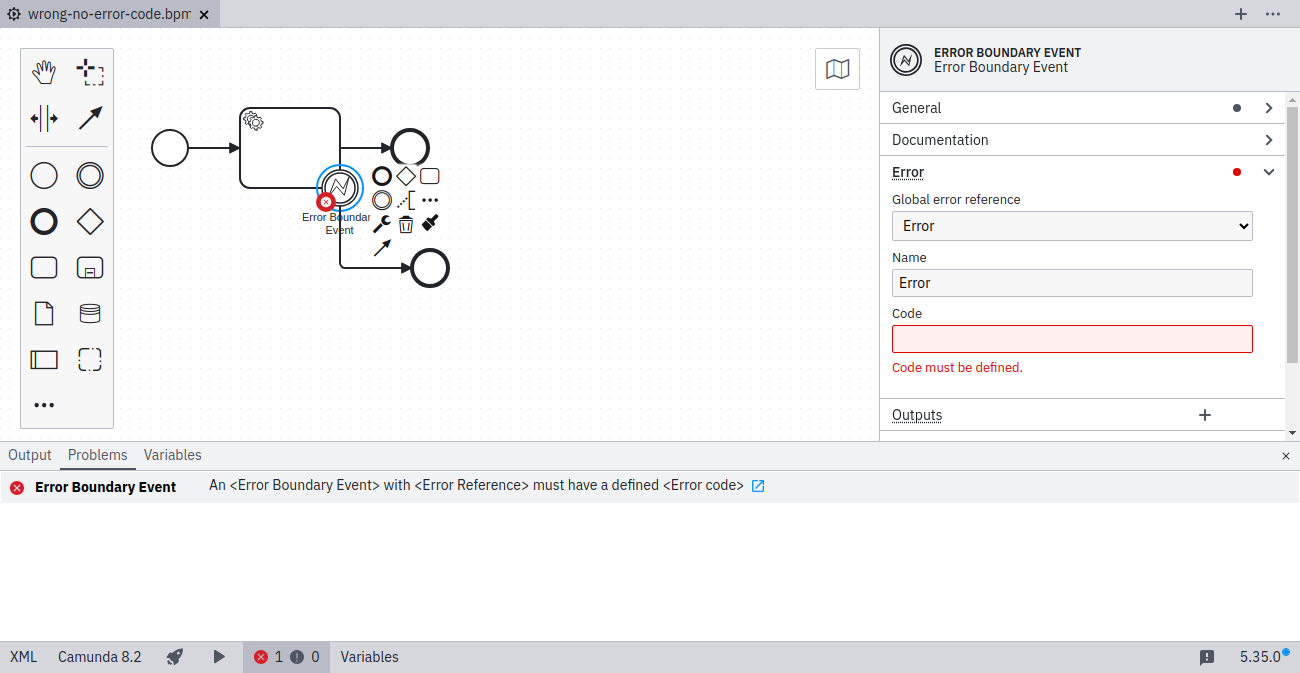

No error code specified

No error code specified

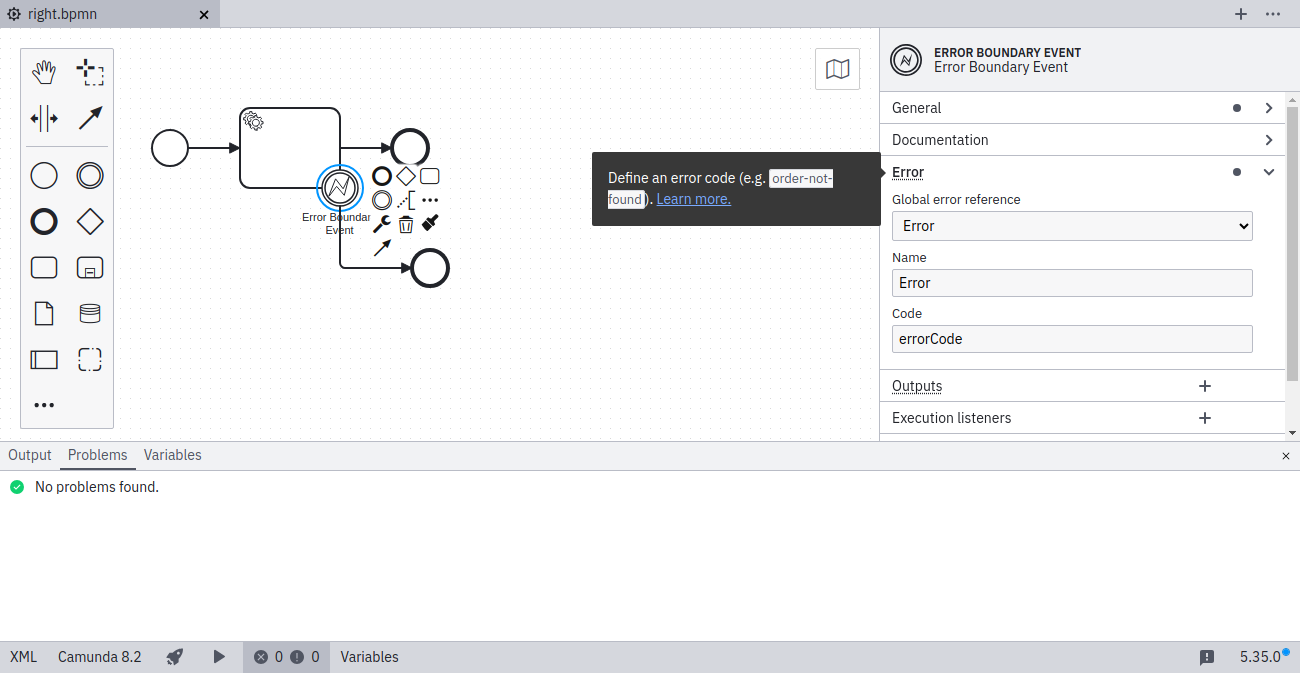

Error selected and error code specified

Error selected and error code specified
