Dual-region setup

Camunda 8 can be deployed in a dual-region configuration with certain limitations. This setup combines active-active data replication with active-passive user traffic routing to ensure high availability and disaster recovery.

important

Both regions must be fully operational at all times. The only distinction is traffic routing: one region serves user traffic (primary), the other processes data but doesn't serve user traffic (secondary).

caution

Before implementing a dual-region setup, ensure you understand the topic, the limitations of dual-region setup, and the general considerations of operating a dual-region setup.

Architecture overview

The dual-region setup is a hybrid active-active/active-passive architecture:

Component	Mode	Both Regions Running	User Traffic	RPO
Zeebe	Active-active	✅ Required	Both regions process data	0
Elasticsearch	Active-active	✅ Required	Data replicated to both	0
Operate	Active-passive	✅ Required	One region serves users	0
Tasklist	Active-passive	✅ Required	One region serves users	0

important

All components in both regions must be fully operational at all times. "Passive" refers only to user traffic routing, not system operation. Both regions actively participate in data processing and replication.

Traffic routing and terminology

Primary and secondary regions

To avoid confusion with traditional "active-passive" terminology, we distinguish between:

• Primary region: Serves user traffic (UI access, API calls).
• Secondary region: Fully operational but does not serve user traffic under normal conditions.

Both regions are operationally active with all components running, but only the primary region handles user interactions.

User traffic management

You must route user traffic exclusively to the primary region. Methods include:

• DNS configuration
• Load balancer settings
• Network routing policies

If the primary region fails, traffic must be redirected manually to the secondary region.

Active-active vs active-passive comparison

• Active-active setups distribute user traffic across multiple regions simultaneously, with all regions processing requests.

• Active-passive setups designate one region for user traffic while keeping backup regions on standby.

• Camunda's hybrid approach combines both:

  • Data layer: Active-active replication ensures zero data loss (RPO = 0).
  • User interface layer: Active-passive routing prevents conflicts and ensures consistency.

Disclaimer

caution

Running dual-region setups requires developing, testing, and executing custom operational procedures matching your environments. This page outlines key points to consider.

Dual-region architecture

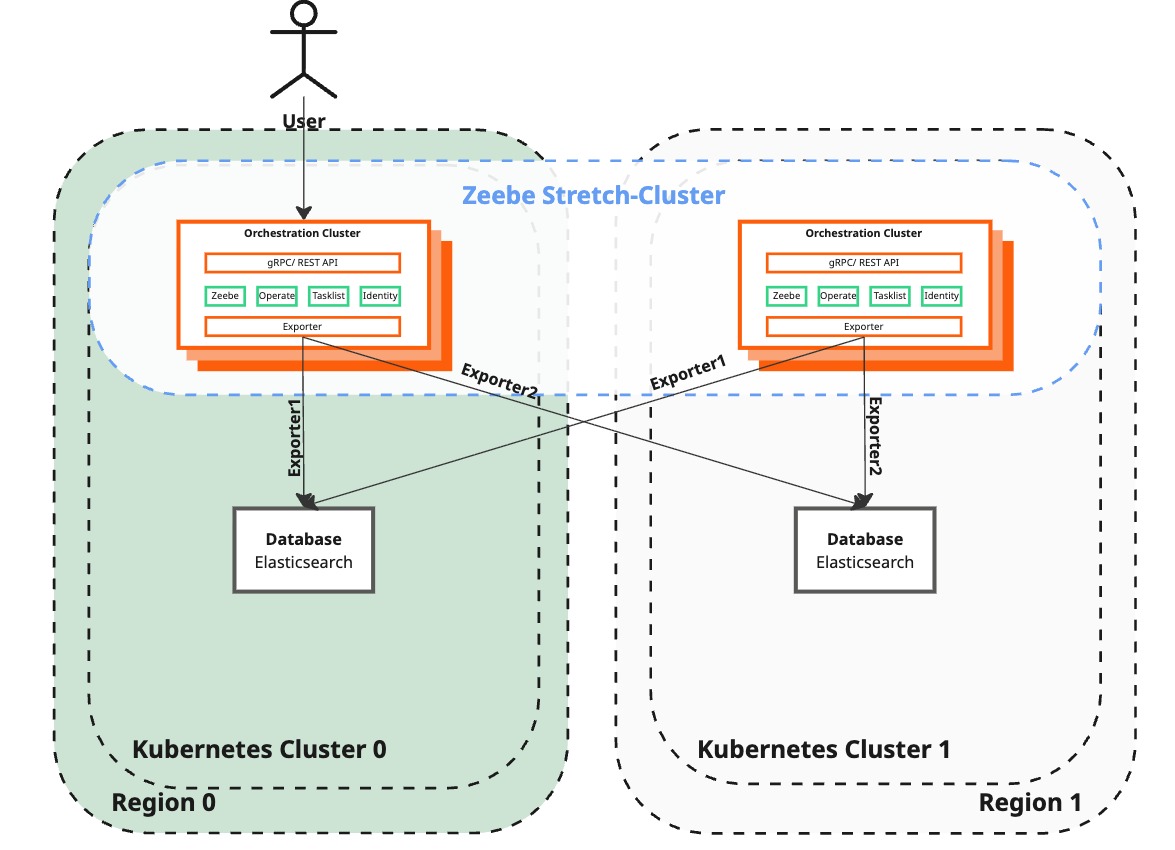

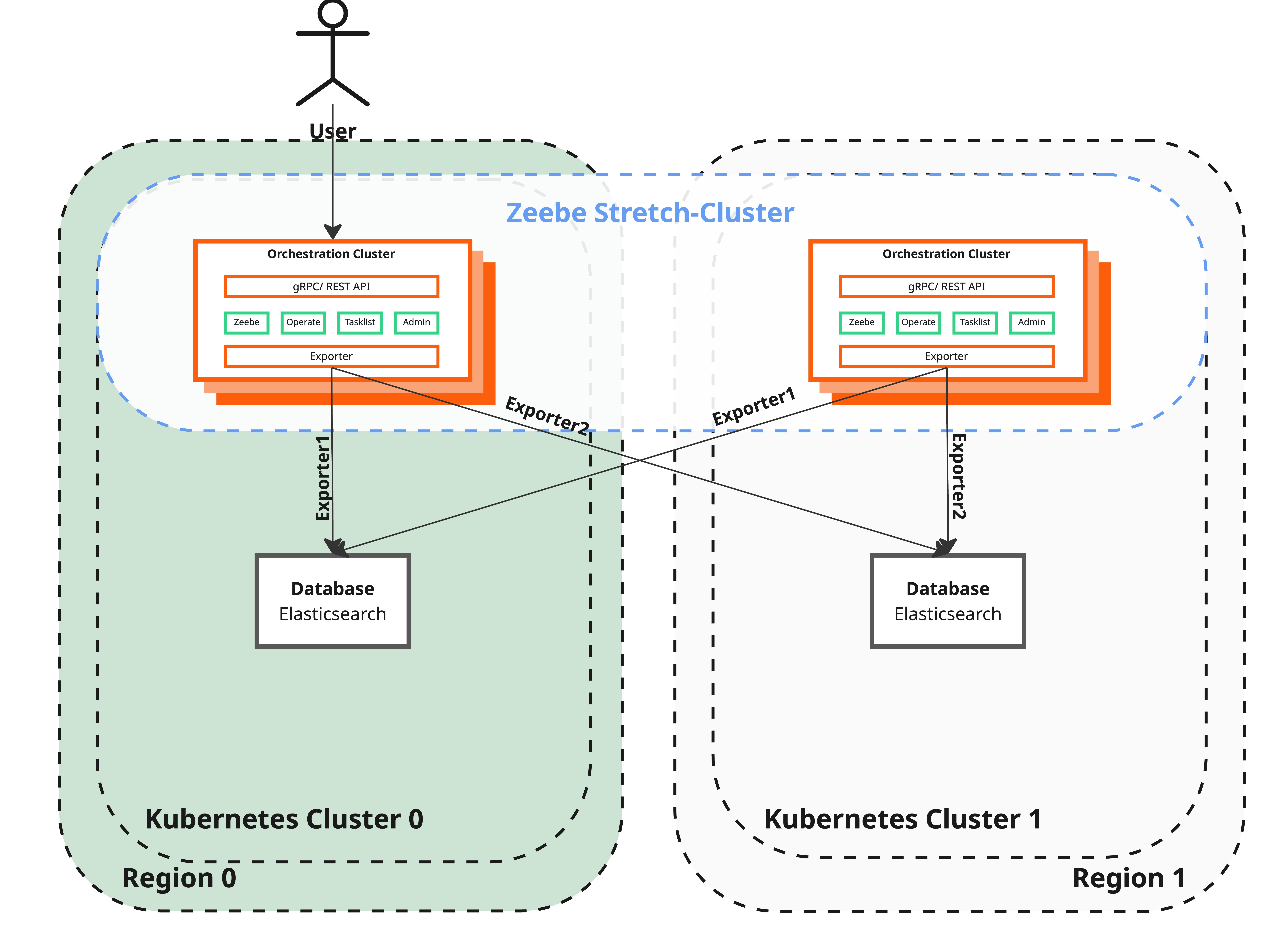

The dual-region architecture consists of two regions in a Kubernetes-based installation. Each region has a Kubernetes cluster with all Camunda 8 components fully operational.

• Region 0 is the primary region serving user traffic.
• Region 1 is the secondary region, fully operational but not serving user traffic.

Both regions actively participate in data processing and replication.

note

The visual representation shows both regions as operational. Any grayed-out appearance in the diagram represents user traffic routing, not system operational status. All components in both regions must be running and operational.

Zeebe stretches across regions using the Raft protocol, allowing communication and data replication between all brokers. Zeebe exports data to Elasticsearch instances in both regions. Operate and Tasklist in both regions import data but only the primary region serves users.

User traffic

The system operates with active-passive user traffic routing. You must designate one region as primary and ensure all user traffic is directed there. The secondary region remains fully operational but does not serve user requests.

Traffic management responsibilities:

• Configure DNS to route to primary region.
• Implement health checks and failover procedures.
• Manually redirect traffic during primary region failure in combination with the operational failover procedure.

Operation requirement

Traffic redirection must be performed as part of the complete failover procedure. Redirecting traffic without following the operational procedure can lead to system inconsistencies and data issues.

Components

The currently supported Camunda 8 Self-Managed components are:

• Zeebe (process automation engine)
• Elasticsearch (database)
• Operate
• Tasklist

Component requirements

Component	Mode	Requirement	Function	Data loss risk
Zeebe	Active-active	All brokers in both regions must run	Leaders and followers distributed across regions Continuous replication via Raft protocol Both regions required for quorum maintenance	Can handle region failure without data loss when properly configured
Elasticsearch	Active-active	Both clusters must run	Independent clusters in each region Zeebe exports identical data to both continuously and directly Data consistency maintained through Zeebe's dual export mechanism, not Elasticsearch replication The clusters do not communicate with each other—replication happens at the Zeebe level	Zeebe exporters may fail globally if secondary ES is down
Operate	Active-passive (user traffic)	Both instances must run and import data	Both regions maintain synchronized data state Only primary serves users Region-specific data: Uncompleted batch operations	Data loss possible if secondary region stops importing (data may be lost after Zeebe retention period)
Tasklist	Active-passive (user traffic)	Both instances must run and import data	Both regions maintain synchronized data state Only primary serves users Region-specific data: Task assignments	Data loss possible if secondary region stops importing (data may be lost after Zeebe retention period)

Requirements and limitations

Installation environment

Two Kubernetes clusters are required for the Helm chart installation.

Amazon OpenSearch is not supported in dual-region configurations.

Network requirements

• Kubernetes clusters, services, and pods must not have overlapping CIDRs. Each cluster must use distinct CIDRs that do not conflict or overlap with those of any other cluster to avoid routing issues.
• The regions (for example, two Kubernetes clusters) must be able to communicate with each other (for example, via VPC peering). See example implementation for AWS EKS.
  • Kubernetes services in one cluster must be resolvable and reachable from the other cluster and vice-versa. This is essential for proper communication and functionality across regions:
    • For AWS EKS setups, ensure DNS chaining is configured. Refer to the Amazon Elastic Kubernetes Service (EKS) setup guide.
    • For OpenShift, Submariner is recommended for handling multi-cluster networking. Refer to the OpenShift dual-region setup guide.
• Maximum network round trip time (RTT) between regions should not exceed 100 ms.
• Required open ports between the two regions:
  • 9200 for Elasticsearch (for cross-region data pushed by Zeebe).
  • 26500 for communication to the Zeebe Gateway from clients/workers.
  • 26501 and 26502 for communication between Zeebe brokers and the Zeebe Gateway.

Zeebe cluster configuration

The following Zeebe brokers and replication configuration are supported:

• clusterSize must be a multiple of 2 and at least 4 to evenly distribute brokers across the two regions.
• replicationFactor must be 4 to ensure even partition distribution across regions.
• partitionCount is unrestricted but should be chosen based on workload requirements. See understanding sizing and scalability behavior. For more details on partition distribution, see documentation on partitions.

Zeebe creates partitions in a round-robin fashion. The Helm charts ensures that all brokers with even numbers (0, 2, 4, 6, ...) are created in the same region. The brokers with uneven numbers (1, 3, 5, 7, ...) are created in the other region.

This numbering and the round-robin partition distribution assures the even replication across the two regions.

Camunda 8 dual-region limitations

Aspect	Details
Installation methods	For Kubernetes we recommend using a dual-region Kubernetes setup with the Camunda Helm chart installed in two Kubernetes clusters. For other platforms, using alternative installation methods (for example, docker-compose) is not covered by our guides.
Traffic Management	Hybrid active-active/active-passive architecture: Data Layer: Active-active replication with zero RPO. User Traffic: Active-passive routing to prevent conflicts. All Components: Must be operational in both regions.
Identity Support	Identity, including multi-tenancy and role-based access control (RBAC), is currently unavailable in this setup.
Optimize Support	Not supported (requires Identity with specific configuration).
Connectors Deployment	Connectors can be deployed in a dual-region setup, but attention to idempotency is required to avoid event duplication. In a dual-region setup, you'll have two connector deployments, so using message idempotency is critical.
Connectors	If you are running Connectors and have a process with an inbound connector deployed in a dual-region setup, consider the following: when you want to delete the process deployment, delete it via Operate, otherwise the inbound connector won't deregister. if you have multiple Operate instances running, then perform the delete operation in both instances. This is a known limitation.
Zeebe Cluster Scaling	Not supported.
Web Modeler	Web Modeler is a standalone component that is not covered in this guide. Modelling applications can operate independently outside of the orchestration clusters.

Infrastructure and deployment platform considerations

Multi-region setups come with inherent complexities, and it is essential to fully understand these challenges before selecting a dual-region configuration.

The following areas must be managed independently, and are not controlled by Camunda or covered by our guides:

• Kubernetes cluster management: Managing multiple Kubernetes clusters and their deployments across regions
• Monitoring and alerting: Dual-region monitoring and alerting with cross-region correlation
• Cost implications: Increased costs of multiple clusters and cross-region traffic
• Network reliability: Data consistency and synchronization challenges (for example, brought in by the increased latency)
  • Bursts of increased latency can already have an impact
• Traffic management: Managing DNS and incoming traffic routing
• Security: Ensuring consistent security policies and network controls across regions
• Backup and disaster recovery: Coordinating backup strategies across regions

Operational Readiness

Before implementing dual-region, ensure your organization has:

• Experience managing multi-cluster Kubernetes environments
• Established procedures for cross-region networking and security
• Monitoring and alerting systems capable of cross-region correlation
• Defined RTO/RPO requirements and tested recovery procedures

Upgrade considerations

When upgrading a dual-region setup, it is crucial to follow a staged approach. Perform the upgrade in one region first before proceeding to the other.

Simultaneously upgrading both regions can result in a loss of quorum for partitions, as two Zeebe brokers might be upgraded at the same time. To prevent this issue, it is recommended to upgrade one region at a time, ensuring that only one Zeebe broker is updated during each upgrade phase.

Region loss

In a dual-region setup, loss of either region affects Camunda 8's processing capability due to quorum requirements.

When a region becomes unavailable, the Zeebe cluster loses quorum (half of brokers unreachable) and immediately stops processing new data. This affects all components as they cannot update or process new processes until the failover procedure completes.

Immediate Impact

Region failure results in immediate service interruption:

• No new process instances can start
• Running process instances are suspended
• User interfaces become unavailable if primary region is lost

See the operational procedure for recovery steps from region loss and re-establishment procedures.

caution

You must monitor for region failures and execute the necessary operational procedures to ensure smooth recovery and failover.

Primary region loss

If the primary region is lost:

• Service disruption: User traffic is unavailable
• Zeebe halt: Processing stops due to quorum loss
• Data loss: Region-specific data such as batch operations and task assignments is lost

Recovery steps for primary region loss

1. Temporary recovery: Follow the operational procedure for temporary recovery to restore functionality and unblock the process automation engine (zeebe).
2. Traffic rerouting: Redirect user traffic to the secondary region (now primary).
3. Data and task management:
   • Reassign uncompleted tasks lost from the previous primary region.
   • Recreate batch operations in Operate.
4. Permanent region setup: Follow the operational procedure to create a new secondary region.

Secondary region loss

If the secondary region is lost:

• Zeebe halt: Processing stops due to quorum loss.
• No user impact: Traffic continues to be served by the primary region during recovery.

Recovery steps for secondary region loss

1. Temporary recovery: Follow the operational procedure to temporarily recover and restore processing.
2. Permanent region setup: Follow the operational procedure to create a new secondary region.

note

Unlike primary region loss, no user-facing data is lost and no traffic rerouting is necessary.

Disaster recovery

Based on all the limitations and requirements outlined in this article, you can consider the Recovery Point Objective (RPO) and Recovery Time Objective (RTO) in case of a disaster recovery to help with the risk assessment.

The RPO is the maximum tolerable data loss measured in time.

The RTO is the time to restore services to a functional state.

For Operate, Tasklist, and Zeebe, the RPO is 0.

The RTO can be considered for the failover and failback procedures, both of which result in a functional state.

• failover has an RTO of < 1 minute to restore a functional state, excluding DNS reconfiguration and Networking considerations.
• failback has an RTO of 5 + X minutes to restore a functional state, where X is the time it takes to back up and restore Elasticsearch. This timing is highly dependent on the setup and chosen Elasticsearch backup type.

During our automated tests, the reinstallation and reconfiguration of Camunda 8 takes 5 minutes. This can serve as a general guideline for the time required, though your experience may vary depending on your available resources and familiarity with the operational procedure.

info

The Recovery Time Objective (RTO) estimates are based on our internal tests and should be considered approximate. Actual times may vary depending on the specific manual steps and conditions during the recovery process.

Further resources

• Familiarize yourself with our Amazon Elastic Kubernetes Service (EKS) setup guide. This showcases an example blueprint setup in AWS that utilizes the managed EKS and VPC peering for a dual-region setup with Terraform.
  • The concepts in the guide are mainly cloud-agnostic, and the guide can be adopted by other cloud providers.
• Familiarize yourself with the operational procedure to understand how to proceed in the case of a total region loss and how to prepare yourself to ensure smooth operations.
