Template properties

The properties array is where you define what properties should be applied to the BPMN element and how the properties panel will present these properties to the user when the template is applied. The underlying concept is very simple:

1. You will create one property object for each property that should be defined by the template.
2. Each property object contains key-value pairs to define how the property is presented and how its value can be changed by the user.
3. Each property object contains one binding object that specifies how the property is mapped to BPMN 2.0 XML.

Element templates can only set properties that can be described by bindings supported by the element template schema. You can find the full list of supported bindings in the bindings section.

When the user applies a template, the properties panel hides all BPMN 2.0 XML and Camunda extension element properties that can be defined by bindings in an element template. The template author must explicitly make the properties user-configurable to show them in the properties panel once the user has applied the template. For example, if a template does not contain a property object with the binding type zeebe:input, the template user will not be able to define an input mapping for the element once the template is applied.

info

Some properties — such as execution listeners, task listeners, element documentation, and multi-instance configurations — cannot be set by element templates. They are situational and require knowledge of the process context to be used. As they are never part of any element template, users can configure them independently of an applied template.

What is part of a property?

You build your template by adding property objects to the properties array. The property object keys are divided into required and optional keys:

Required keys

• binding : Object: An object specifying how the property is mapped to BPMN or Camunda extensions.

Optional keys

• type : "String" | "Text" | "Boolean" | "Dropdown" | "Hidden": Defines the input type in the properties panel.
• value : String | Number | Boolean: A default value to be used if the property to be bound is not yet set by the user or if the type is Hidden.
• generatedValue : Object: A configuration to generate a value when the property is applied to an element.
• placeholder : String: Placeholder text shown in the input field when it is empty.
• feel : "required" | "optional" | "static": Defines whether the property supports FEEL expressions.
• label : String: Label text above the property input.
• tooltip : String: Tooltip text shown when hovering over the label.
• description : String: Description text below the property input.
• optional : Boolean: Setting this key's value determines whether properties persist empty values in the underlying BPMN 2.0 XML.
• constraints : Object: A list of editing constraints to apply to the value of the property.
• group : String: The group that the property belongs to.
• condition : Object: A condition that determines when the property is active and visible.
• id : String: An identifier that can be used to reference the property in conditional properties.

Not all keys and values are compatible with each other. Some keys or values require other keys to be set to a certain value, even if the key is marked as optional above. For more information, see the documentation below.

If your editor (e.g. VS Code) offers validation based on JSON schema, these incompatibilities or missing key-value pairs are highlighted as you edit your template. The Web Modeler's element template editor offers an additional problems panel that shows these errors with additional descriptions to help you better understand what needs to be fixed. The Desktop Modeler shows these errors with additional descriptions in the output tab, when it tries to load an invalid template.

For most purposes, binding, label, type, and value are sufficient to define a property.

All property objects are defined inside the properties array:

{
  "schema": "https://unpkg.com/@camunda/zeebe-element-templates-json-schema/resources/schema.json",
  ...,
  "properties": [
    {
      "label": "Some property",
      "type": "String",
      "binding": {
        ...
      }
    },
    {
      "label": "Some other property",
      "type": "Number",
      "binding": {
        ...
      }
    },
    ...
  ]
}

For a comprehensive example showing how to create a REST connector template with all the concepts covered in this documentation, see the complete template example page.

The key-value pairs of the property object are explained in the following sections.

Setting the input type: type

The input types String, Text, Number, Boolean, Dropdown, and Hidden are available.

String input type

The String type maps to a single-line input field. Refer to the FEEL section to use Strings as an expression.

Text input type

The Text type maps to a multi-line text area. Refer to the FEEL section to use Text as an expression.

Hidden input type

The Hidden type is not shown in the properties panel. It is used to set static or generated values that should not be changed by the user.

Number input type

The Number type maps to a number input field. Refer to the FEEL section to use Numbers as expressions.

Boolean / checkbox input type

The Boolean type maps to a checkbox that can be toggled by the user.

When checked, it maps to true in the respective field. Additionally, refer to the FEEL section to use Booleans as expressions.

Dropdown input type

The Dropdown type allows users to select from a number of pre-defined options that are stored in a choices array as { name : String, value : String } pairs:

{
  "label": "REST Method",
  "description": "Specify the HTTP method to use.",
  "type": "Dropdown",
  "value": "get",
  "choices": [
    {
      "name": "GET",
      "value": "get"
    },
    {
      "name": "POST",
      "value": "post"
    },
    {
      "name": "PATCH",
      "value": "patch"
    },
    {
      "name": "DELETE",
      "value": "delete"
    }
  ],
  "binding": {
    "type": "zeebe:taskHeader",
    "key": "method"
  }
}

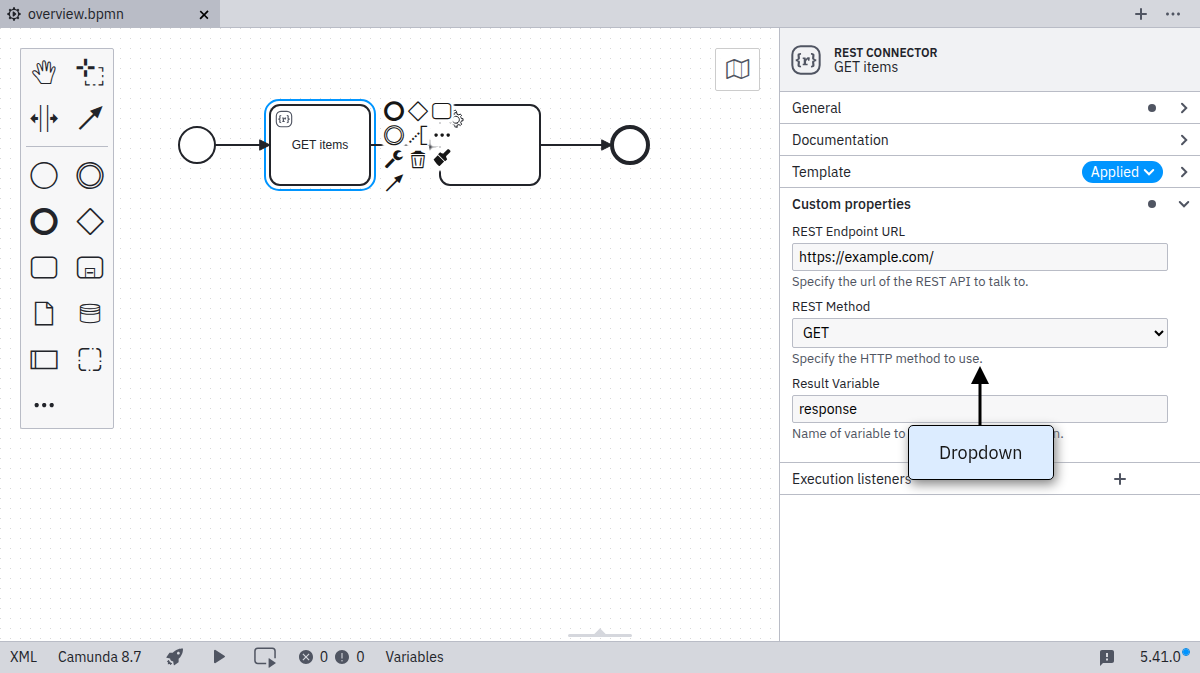

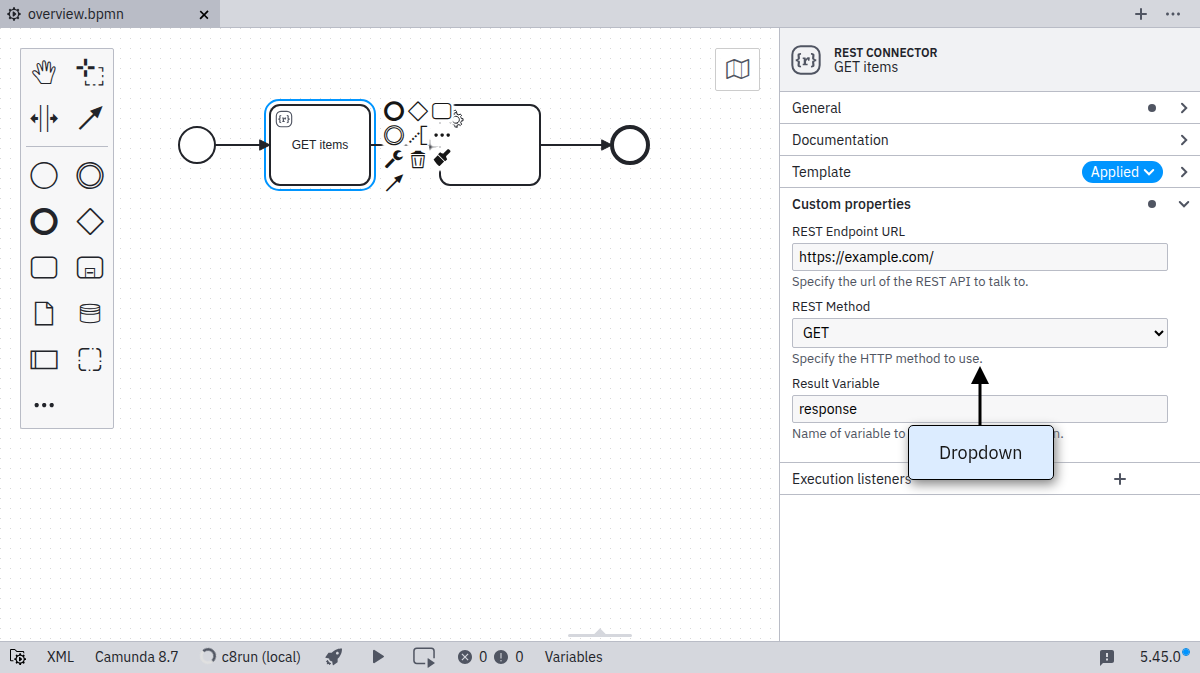

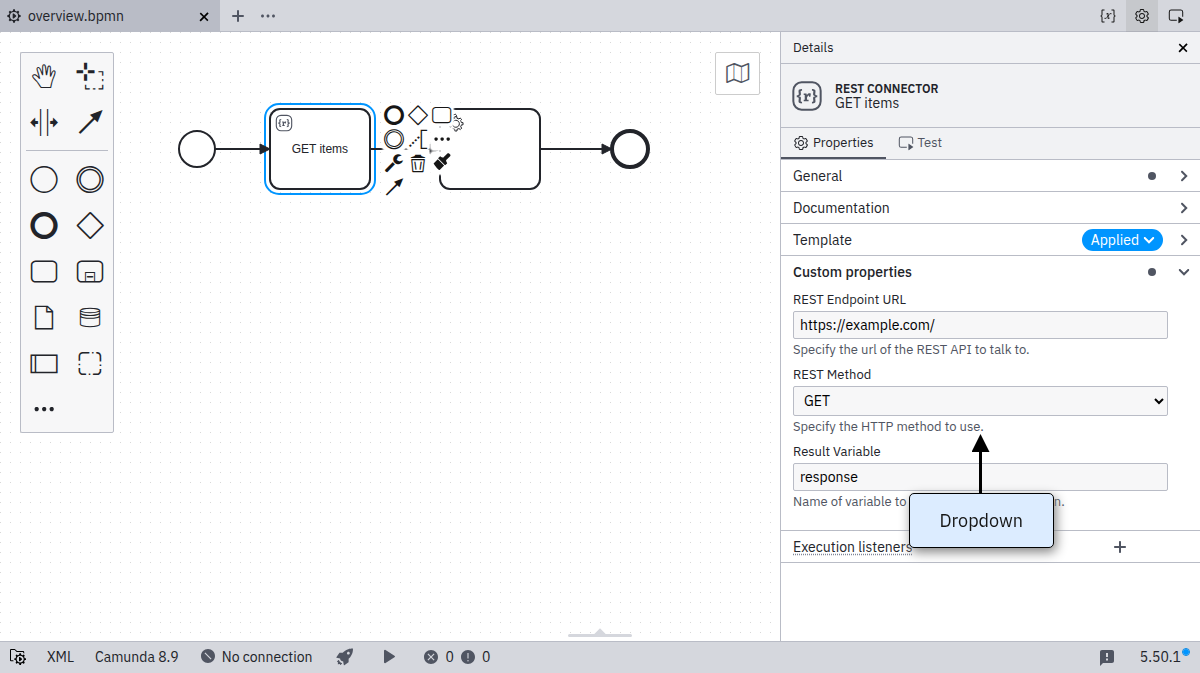

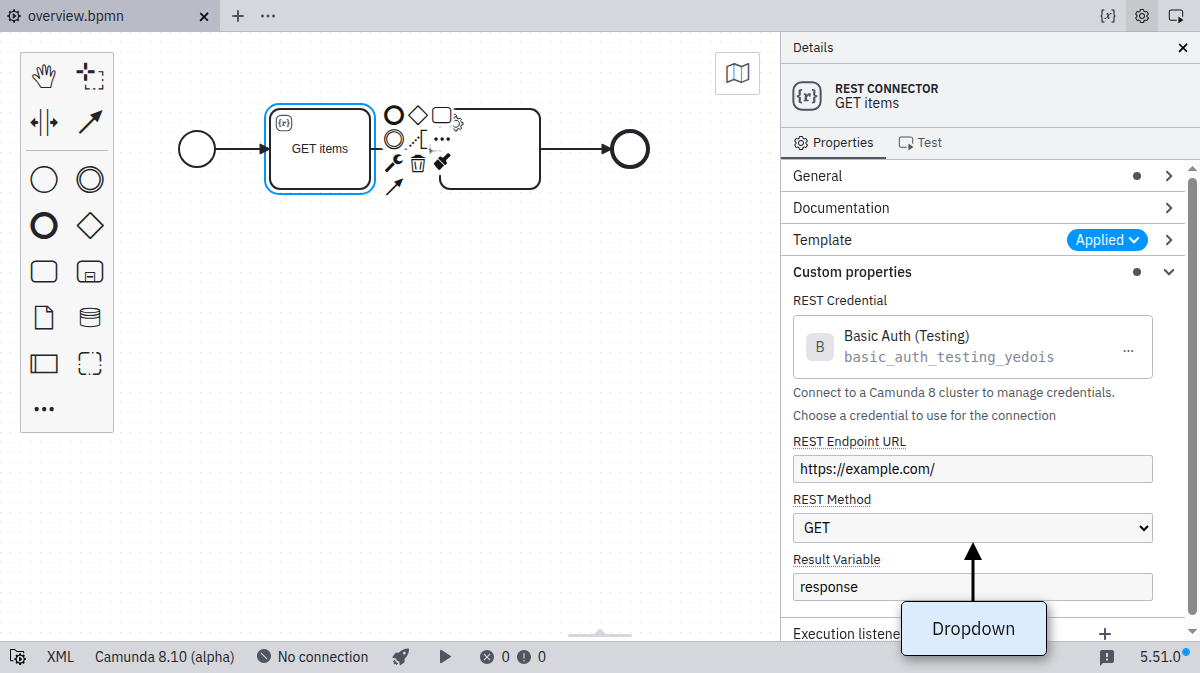

The resulting properties panel control looks like this:

Setting a default value: value

The value key defines a static default value for a property. The value is applied to the property defined by the binding when the template is applied to an element until a user provides their own input value. value should be defined whenever the input type is Hidden. The value of value must match the type of the property and must be a string if the type is hidden.

{
  "value": "4",
  "type": "Hidden",
  "binding": {
    "type": "zeebe:taskDefinition",
    "property": "retries"
  }
}

Generating a value: generatedValue

As an alternative to static value, you can use a generated value. The value is generated when a property is applied to an element. Currently, the generated value can be a UUID:

{
  "generatedValue": {
    "type": "uuid"
  },
  "type": "Hidden",
  "binding": {
    "type": "zeebe:property",
    "name": "id"
  }
}

Setting a text placeholder: placeholder

The following property types support the placeholder attribute:

• String
• Text

The placeholder is displayed when a field is empty:

{
  "label": "Web service URL",
  "type": "String",
  "binding": {
    ...
  },
  "placeholder": "https://example.com"
}

Adding FEEL editor support: feel

The following input types support the feel property:

• String
• Text
• Number
• Boolean

FEEL required

The properties panel will display the field as a FEEL editor and will show a visual indication that a FEEL expression is required:

{
  "label": "Required FEEL Expression",
  "type": "String",
  "feel": "required",
  ...
}

FEEL optional

The properties panel will show an indicator to switch to a FEEL expression. When activated, the field displays as a FEEL editor:

    {
  "label": "Optional FEEL Expression",
  "type": "String",
  "feel": "optional",
  ...
}

For Boolean and Number fields, the value will always be persisted as a FEEL expression. This ensures that the value will not be interpreted as a string when evaluated in the engine.

FEEL static

The value of feel: static is only valid for Boolean and Number fields. Similar to FEEL optional, the value of the field will be persisted as a FEEL expression. However, there is no toggle to switch to a FEEL editor and only a static value can be entered:

{
  "label": "Static FEEL value",
  "type": "Number",
  "feel": "static",
  ...
}

For binding types zeebe:input and zeebe:output, feel: static is the default value used in case of missing feel property.

Binding an input to a BPMN or Camunda element property: binding

The previous sections describe how to display a property to the user in the properties panel and how to configure its value. These inputs need to be mapped to the underlying BPMN 2.0 XML or Camunda extensions by using a binding object.

The binding is an object with a mandatory type key and an additional parameter depending on the binding's type value. binding.type defines what kind of BPMN or Camunda element is targeted by the binding. The additional binding parameter is a key on the binding object--for example, name, key, or property. That key-value pair defines the target for the default value or user input.

Note that adherence to the following bindings s is enforced by design. If the template does not adhere to them, the modeler logs a validation error and ignores the respective element template.

To fully grasp the concept of bindings, it is helpful to have a good understanding of BPMN 2.0 XML and Camunda extensions. If you want to learn more about a certain BPMN element and its properties, you can read through the BPMN section on Tasks, Events, and Subprocesses. Each page on an element contains a description of its properties and an example XML representation.

info

If a property cannot be set via any of the bindings described below, it cannot be set by an element template. For example, execution listeners and multi-instance configurations cannot be set by an element template.

warning

If you add multiple properties with equal binding objects, the behavior is undefined.

The mapping result in the following section uses [userInput] to indicate where the input provided by the user in the properties panel is set in the BPMN XML. If the user provides no input, the value specified in value is displayed and used for [userInput]. Square brackets, [], are used to indicate what the binding parameters are mapped to in the XML.

Input mapping: zeebe:input

Binding type	zeebe:input
Valid property types	String Text Hidden Dropdown Boolean Number
Binding parameters	name: The name of the input parameter
Mapping result	<zeebe:input target="[name]" source="[userInput] />

Configures an input mapping.

{
  ...,
  "value": "aProcessVariableName",
  "binding": {
    "type": "zeebe:input",
    "name": "aTaskVariableName"
  }
}

Output mapping: zeebe:output

Binding type	zeebe:output
Valid property types	String Text Hidden Dropdown Boolean Number
Binding parameters	source: The source of the output parameter
Mapping result	<zeebe:output target="[userInput]" source="[source] />

Configures an output mapping.

{
  ...,
  "value": "aProcessVariableName",
  "binding": {
    "type": "zeebe:output",
    "source": "aTaskVariableName"
  }
}

Header: zeebe:taskHeader

Binding type	zeebe:taskHeader
Valid property types	String Text Hidden Dropdown
Binding parameters	key: The key of the task header
Mapping result	<zeebe:header key="[key]" value="[userInput]" />

Configures a task header.

{
  ...,
  "value": "aHeaderValue",
  "binding": {
    "type": "zeebe:taskHeader",
    "key": "aHeaderKey"
  }
}

Task definition: zeebe:taskDefinition

Binding type	zeebe:taskDefinition
Valid property types	String Text Hidden Dropdown
Binding parameters	property: The name of the task definition property. Can be type or retries.
Mapping result	<zeebe:taskDefinition [property]="[userInput]" />

Configures the task for a service or user task.

[
  {
    ...,
    "value": "aTaskType",
    "binding": {
      "type": "zeebe:taskDefinition",
      "property": "type"
    }
  },
  {
    ...,
    "value": "3",
    "binding": {
      "type": "zeebe:taskDefinition",
      "property": "retries"
    }
  },
  ...
]

Task definition: zeebe:taskDefinition:type (deprecated)

danger

zeebe:taskDefinition:type is a deprecated binding. Instead, use zeebe:taskDefinition with property=type.

Binding type	zeebe:taskDefinition:type
Valid property types	String Text Hidden Dropdown
Binding parameters
Mapping result	<zeebe:taskDefinition type="[userInput]" />

Configures the task type for a service or user task.

{
  ...,
  "value": "aTaskType",
  "binding": {
    "type": "zeebe:taskDefinition:type"
  }
}

Extension properties: zeebe:property

Binding type	zeebe:property
Valid property types	String Text Hidden Dropdown
Binding parameters	name: The name of the property
Mapping result	<zeebe:property name="[name]" value="[userInput] />

The zeebe:property binding allows you to set any arbitrary property for an outside system. It does not impact execution of the Zeebe engine.

{
  ...,
  "value": "{\"outputVar\": 5}",
  "binding": {
    "type": "zeebe:property",
    "name": "camundaModeler:exampleOutputJson"
  }
}

Primitive BPMN properties: property

Binding type	property
Valid property types	All property types are supported
Binding parameters	name: The name of the property
Mapping result	<... [name]="[userInput]" ... />

Configures generic BPMN element properties that are text, boolean, and numeric types. Additionally, expression types completionCondition and conditionExpression are supported. Other properties, such as references and complex property types, are currently NOT supported and will lead to runtime errors when modeling.

[
  {
    ...,
    "value": "= someValue >= 1",
    "binding": {
      "type": "property",
      "name": "completionCondition"
    }
  },
  {
    ...,
    "value": "customPropertyValue",
    "binding": {
      "type": "property",
      "name": "mynamespace:customProperty"
    }
  },
  ...
]

Message name: bpmn:Message#property

Binding type	bpmn:Message#property
Valid property types	String Text Hidden Dropdown
Binding parameters	name: The name of the property
Mapping result	<bpmn:message [name]="[userInput]" />

The bpmn:Message#property binding allows you to set properties of a bpmn:Message referred to by the templated element. This binding is only valid for templates of events with bpmn:MessageEventDefinition, receive tasks, and send tasks.

{
  ...,
  "generatedValue": {
    "type": "uuid"
  },
  "binding": {
    "type": "bpmn:Message#property",
    "name": "name"
  }
}

note

When designing a template for a message receive task or event, it is sufficient to define the binding for the message name and the correlation key. The message ID is automatically generated when the template is applied. The messageRef property does not have to be defined.

Remember that the message name and correlation key define the correlation characteristics of a message and can be shared by multiple process definitions.

Message correlation key: bpmn:Message#zeebe:subscription#property

Binding type	bpmn:Message#zeebe:subscription#property
Valid property types	String Text Hidden Dropdown
Binding parameters	name: The name of the property
Mapping result	<zeebe:subscription [name]="[userInput]" />

The bpmn:Message#zeebe:subscription#property binding allows you to set properties of a zeebe:subscription set within bpmn:Message referred to by the templated element. This binding is only valid for templates of events with bpmn:MessageEventDefinition and receive tasks.

{
  ...,
  "value": "=aCorrelationKey",
  "binding": {
    "type": "bpmn:Message#zeebe:subscription#property",
    "name": "correlationKey"
  }
}

note

The binding name of correlationKey is not applicable to message start events on a process. In such cases, the property is automatically hidden.

Called element: zeebe:calledElement

Binding type	zeebe:calledElement
Valid property types	String Text Hidden Dropdown
Binding parameters	property: The name of the property. Supported properties: processId, bindingType, and versionTag.
Mapping result	<zeebe:calledElement [property]="[userInput]" />

The zeebe:calledElement binding allows you to configure a process called by a call activity.

You can set the value of the property bindingType to control the resource binding type. We recommend setting the property bindingType to the value "versionTag" and setting the property versionTag to the value of the version tag of the process you want to call.

[
  {
    ...,
    "value": "aProcessId",
    "binding": {
      "type": "zeebe:calledElement",
      "property": "processId"
    }
  },
  {
    ...,
    "value": "versionTag",
    "binding": {
      "type": "zeebe:calledElement",
      "property": "bindingType"
    }
  },
  {
    ...,
    "value": "v1",
    "binding": {
      "type": "zeebe:calledElement",
      "property": "versionTag"
    }
  },
  ...
]

note

For zeebe:calledElement bindings, variable propagation is not supported. To provide or retrieve variables, use zeebe:input and zeebe:output bindings.

User task implementation: zeebe:userTask

Binding type	zeebe:userTask
Valid property types	Hidden
Binding parameters	This is a flag-like binding, so it has no parameters and only applies to templates with element type bpmn:UserTask.
Mapping result	<zeebe:userTask />

The zeebe:userTask binding allows you to configure the implementation type for a templated bpmn:UserTask. When present, it sets the task as a Camunda user task; when omitted, the task defaults to a job worker.

{
  "type": "Hidden",
  "binding": {
    "type": "zeebe:userTask"
  }
}

Form: zeebe:formDefinition

Binding type	zeebe:formDefinition
Valid property types	String Text Hidden Dropdown
Binding parameters	property: The name of the property. Supported properties: formId, externalReference, bindingType, and versionTag.
Mapping result	<zeebe:formDefinition [property]="[userInput]" />

The zeebe:formDefinition binding allows you to configure the user task form used by a user task.

When setting the formId property, you can set the value of the property bindingType to control the resource binding type. We recommend setting the property bindingType to the value "versionTag" and setting the property versionTag to the value of the version tag of the form you want to link.

[
  {
    ...,
    "value": "aFormId",
    "binding": {
      "type": "zeebe:formDefinition",
      "property": "formId"
    }
  },
  {
    ...,
    "value": "versionTag",
    "binding": {
      "type": "zeebe:formDefinition",
      "property": "bindingType"
    }
  },
  {
    ...,
    "value": "v1",
    "binding": {
      "type": "zeebe:formDefinition",
      "property": "versionTag"
    }
  },
  ...
]

note

When zeebe:formDefinition is used, zeebe:userTask must be set on the same element. Properties formId and externalReference are mutually exclusive, meaning that only one of them can be set at a time. The property externalReference cannot be used together with bindingType.

User task assignment: zeebe:assignmentDefinition

Binding type	zeebe:assignmentDefinition
Valid property types	String Text Hidden Dropdown
Binding parameters	property: The name of the property. Supported properties: assignee, candidateGroups, and candidateUsers.
Mapping result	<zeebe:assignmentDefinition [property]="[userInput]" />

The zeebe:assignmentDefinition binding allows you to configure the user task assignment.

[
  {
    ...,
    "value": "=manager",
    "binding": {
      "type": "zeebe:assignmentDefinition",
      "property": "assignee"
    }
  },
  {
    ...,
    "value": "group1,group2",
    "binding": {
      "type": "zeebe:assignmentDefinition",
      "property": "candidateGroups"
    }
  },
  {
    ...,
    "value": "user1,user2,user3",
    "binding": {
      "type": "zeebe:assignmentDefinition",
      "property": "candidateUsers"
    }
  },
  ...
]

note

When zeebe:assignmentDefinition is used, zeebe:userTask must be set on the same element.

User task schedule: zeebe:taskSchedule

Binding type	zeebe:taskSchedule
Valid property types	String Text Hidden Dropdown
Binding parameters	property: The name of the property. Supported properties: dueDate and followUpDate.
Mapping result	<zeebe:taskSchedule [property]="[userInput]" />

The zeebe:taskSchedule binding allows you to configure the user task scheduling.

[
  {
    ...,
    "value": "=dueDateVariable",
    "binding": {
      "type": "zeebe:taskSchedule",
      "property": "dueDate"
    }
  },
  {
    ...,
    "value": "2025-10-14T12:00:00Z",
    "binding": {
      "type": "zeebe:taskSchedule",
      "property": "followUpDate"
    }
  },
  ...
]

note

When zeebe:taskSchedule is used, zeebe:userTask must be set on the same element.
If the template sets a static value for dueDate or followUpDate, it must be defined as an ISO 8601 combined date and time representation.

User task priority: zeebe:priorityDefinition

Binding type	zeebe:priorityDefinition
Valid property types	Number String (only with feel set to required) Text (only with feel set to required) Hidden Dropdown
Binding parameters	property: The name of the property. Supported property: priority.
Mapping result	<zeebe:priorityDefinition [property]="[userInput]" />

The zeebe:priorityDefinition binding allows you to configure the user task priority.

{
  ...,
  "value": 42,
  "binding": {
    "type": "zeebe:priorityDefinition",
    "property": "priority"
  }
}

note

When zeebe:priorityDefinition is used, zeebe:userTask must be set on the same element.

If the template sets a static value for priority, it must be between 0 and 100.

Called decision: zeebe:calledDecision

Binding type	zeebe:calledDecision
Valid property types	String Text Hidden Dropdown
Binding parameters	property: The name of the property. Supported properties: decisionId, resultVariable, bindingType, and versionTag.
Mapping result	<zeebe:calledDecision [property]="[userInput]" />

The zeebe:calledDecision binding allows you to configure the called decision used by a business rule task.

You can set the value of the property bindingType to control the resource binding type. We recommend setting the property bindingType to the value "versionTag" and setting the property versionTag to the value of the version tag of the decision you want to call.

[
  {
    ...,
    "value": "aDecisionId",
    "binding": {
      "type": "zeebe:calledDecision",
      "property": "decisionId"
    }
  },
  {
    ...,
    "value": "aResultVariable",
    "binding": {
      "type": "zeebe:calledDecision",
      "property": "resultVariable"
    }
  },
  {
    ...,
    "value": "versionTag",
    "binding": {
      "type": "zeebe:calledDecision",
      "property": "bindingType"
    }
  },
  {
    ...,
    "value": "v1",
    "binding": {
      "type": "zeebe:calledDecision",
      "property": "versionTag"
    }
  },
  ...
]

note

When zeebe:calledDecision is used, zeebe:taskDefinition cannot be used on the same element.

Script: zeebe:script

Binding type	zeebe:script
Valid property types	String Text Hidden Dropdown
Binding parameters	property: The name of the property. Supported properties: expression and resultVariable.
Mapping result	<zeebe:script [property]="[userInput]" />

The zeebe:script binding allows you to configure the FEEL expression used by a script task.

[
  {
    ...,
    "value": "= a + b",
    "binding": {
      "type": "zeebe:script",
      "property": "expression"
    }
  },
  {
    ...,
    "value": "result",
    "binding": {
      "type": "zeebe:script",
      "property": "resultVariable"
    }
  },
  ...
]

note

When zeebe:script is used, zeebe:taskDefinition cannot be used on the same element. If the input type is String or Text, then feel must be set to required"

Setting a task implementation

The following tasks support multiple implementation types:

• User task: zeebe:userTask and zeebe:taskDefinition (most related properties--for example, Assignment, Task schedule, and Priority--are only supported when zeebe:userTask is set)
• Business rule task: zeebe:calledDecision and zeebe:taskDefinition
• Script task: zeebe:script and zeebe:taskDefinition

You pick an implementation type by adding the respective binding with the respective type to your properties array.

Setting a resource binding type

The task types listed below that can reference external resources also let you define the resource binding type:

• Call activity: zeebe:calledElement
• User task form: zeebe:formDefinition
• Business rule task: zeebe:calledDecision

Setting a resource binding type helps you define what version of a resource (process, form, or decision) should be used during process execution. Camunda generally recommends using versionTag as the resource binding type. This helps to ensure that only resources with a matching versionTag are used during process execution. By default, the binding type is latest, meaning that the latest deployed version of a resource is used whenever the task is executed. Using latest in combination with element templates bears the risk that a resource can be changed in an incompatible way. This can make invocations with old templates fail, for example, because an input mapping is missing from an old template, but is required by the updated resource.

The binding type can be set like so:

{
  "properties": [
    ...,
    {
      "type": "Hidden",
      "value": "versionTag", // set binding type to versionTag
      "binding": {
        "type": "zeebe:calledElement", // or zeebe:formDefinition or zeebe:calledDecision
        "property": "bindingType"
      }
    },
    {
      "type": "Hidden",
      "value": "v1", // set the version tag to use
      "binding": {
        "type": "zeebe:calledElement",
        "property": "versionTag"
      }
    }
  ]
}

As you can see in the example above, the properties bindingType and versionTag are of type Hidden. This is because these properties should generally not be changed by the user, unless the template author has very good reasons to allow this. Should an update to the resource be necessary, you can create a new version of the template that uses a different version tag.

For further information, see the section on element templates with dependencies.

Preventing persisting empty values: optional

We support optional bindings that do not persist empty values in the underlying BPMN 2.0 XML. If a user removes the value from the input field in the properties panel, it will also remove the mapped element. This works as follows:

• true: When the user removes the value (or leaves the field empty), the empty values are NOT persisted.

• false: When the user removes the value, the empty values ARE persisted in the XML. This is the default behavior. The following binding types can be optional:

• zeebe:input

• zeebe:output

• zeebe:taskHeader

• zeebe:property

Example:

{
  "label": "Request",
  "type": "String",
  "optional": true,
  "binding": {
    "type": "zeebe:input",
    "name": "request"
  }
}

Grouping fields: group

Associate a field with a group (ID) via the field's group key:

{
  ...,
  "groups": [
    {
      "id": "definition",
      "label": "Task definition",
      "openByDefault": true
    }
  ],
  "properties": [
    {
      "group": "definition",
      "label": "Task type",
      "type": "String",
      "value": "http-job",
      "binding": {
        "type": "zeebe:taskDefinition",
        "property": "type"
      }
    },
    ...
  ]
}

Validating user input: constraints

Custom fields may have a number of constraints associated with them:

• notEmpty : Boolean: Input must be non-empty, when set to true.
• minLength : Integer: Minimum length for the input.
• maxLength : Integer: Maximum length for the input.
• pattern : Object: Regular expression to match the input against.

Validating against a regex: pattern

Set pattern to a regular expression to ensure the user's input matches the pattern. Together with the pattern constraint, you can define a custom error message:

{
  "label": "Web service URL",
  "type": "String",
  "binding": {
    ...
  },
  "constraints": {
    "notEmpty": true,
    "pattern": {
      "value": "https://.*",
      "message": "Must be https URL"
    }
  }
}

warning

When a template exposes a property to a user, the template is responsible for showing all validation errors in the properties panel. That includes non-compliance with BPMN and Zeebe schema constraints. You should therefore use notEmpty where necessary.

The Modeler's problems panel shows errors for invalid properties, whether or not a template is applied.

Showing properties conditionally: condition

Properties may have a condition which determines when they should be active, depending on the value of another property. For example for a HTTP request template, you might not want to show the Request Body property when the HTTP method is GET.

When a property is active, it is displayed in the properties panel, and its value is serialized in the XML. If a property is not active, it is not displayed, and its value is removed from the XML.

For a property value to be used in a condition, the property needs to have an id that can be referenced by the conditional property.

A property can depend on one or more conditions. If there are multiple conditions, they can be defined using allMatch. All the conditions must be met for the property to be active.

There are three possible comparison operators:

• equals: Checks if the value is equal to the value defined in the condition.
• oneOf: Checks if the value is in the list of values defined in the condition.
• isActive: Checks if the referenced property is currently active and not hidden by other conditions.

[
  {
    "id": "httpMethod",
    "label": "HTTP Method",
    "type": "Dropdown",
    "choices": [
      {
        "name": "get",
        "value": "GET"
      },
      {
        "name": "patch",
        "value": "PATCH"
      },
      {
        "name": "post",
        "value": "POST"
      }
    ],
    "binding": {
      ...
    }
  },
  {
    "label": "Request Body",
    "type": "String",
    "binding": {
      ...
    },
    "condition": {
      "allMatch": [
        {
          "property": "httpMethod",
          "oneOf": [
            "patch",
            "post"
          ]
        },
        {
          "property": "...",
          "isActive": "true"
        },
        {
          "property": "...",
          "equals": "someValue"
        }
      ]
    }
  },
  ...
]

Preventing edits: editable

By default, all properties defined in an element template that do not have type Hidden are editable. You can prevent edits by setting the editable property to false. The property will be displayed in the properties panel but cannot be changed.

{
  "label": "Task type",
  "type": "String",
  "value": "http-job-type",
  "editable": false,
  "binding": {
    "type": "zeebe:taskDefinition",
    "property": "type"
  }
}

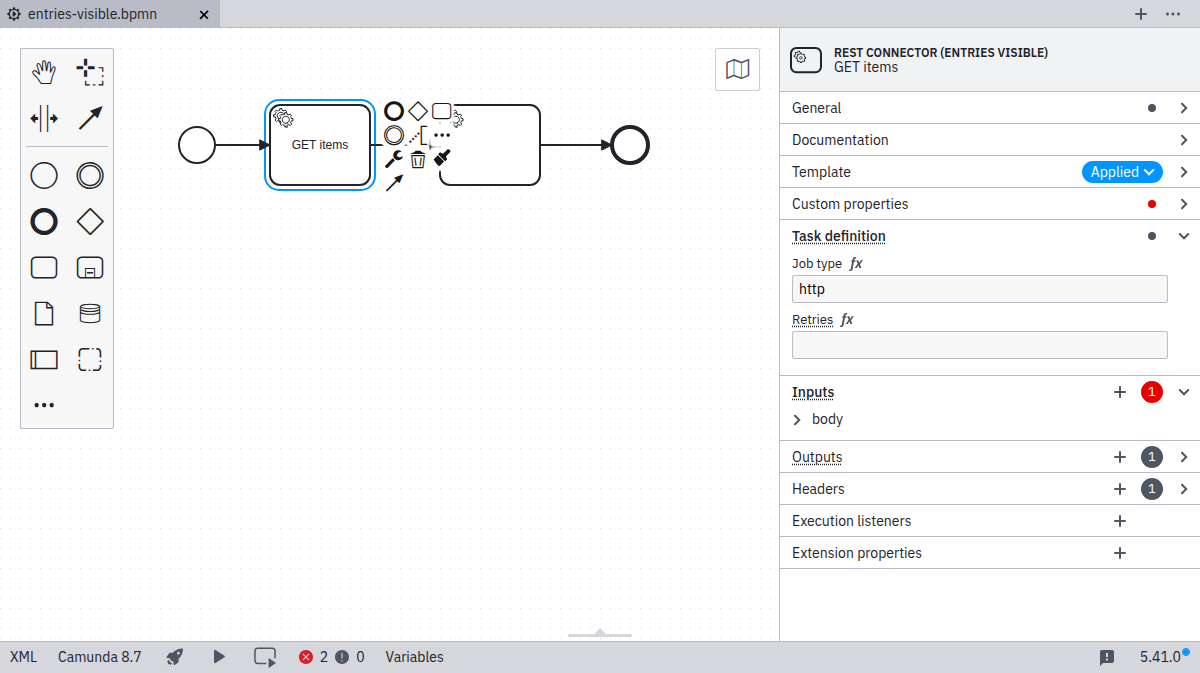

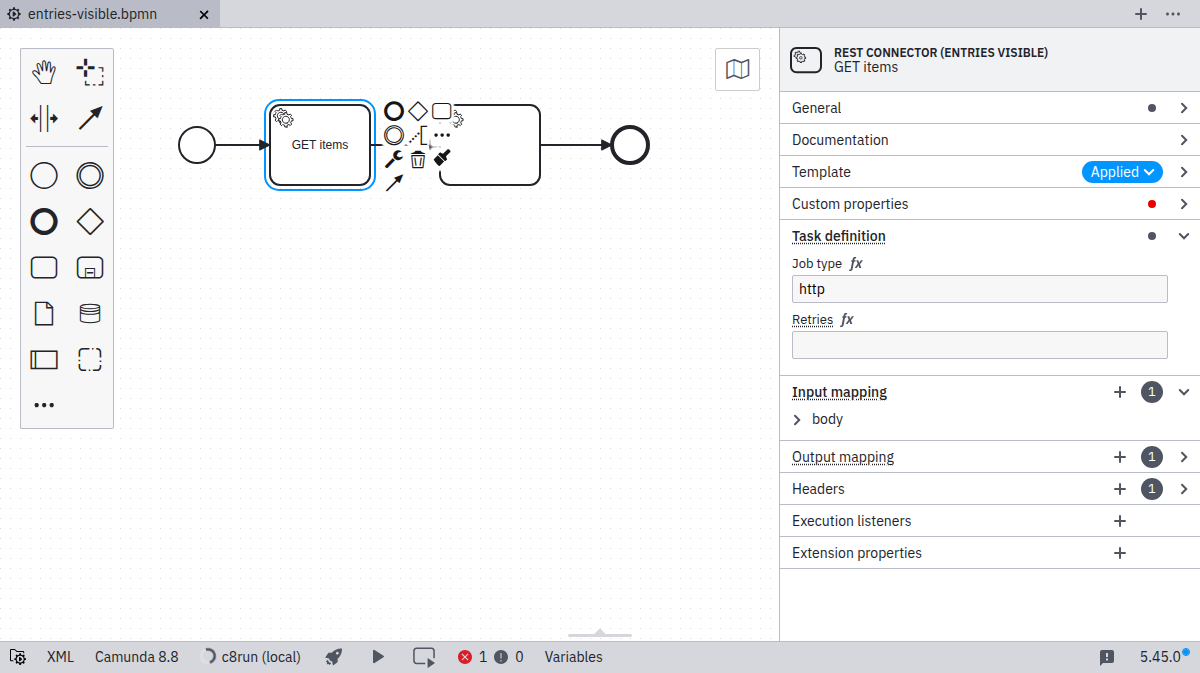

Displaying all entries: entriesVisible

By default, the element template defines the visible entries in the properties panel. All other property controls are hidden. To bring all the default entries back, use the entriesVisible property. If this key is set to true, the default properties will be listed below the element template properties in the properties panel. You should generally avoid using this configuration, as it removes the abstraction introduced by the template.

[
  {
    "name": "Template 1",
    "id": "sometemplate",
    "entriesVisible": true,
    "appliesTo": [
      "bpmn:ServiceTask"
    ],
    "properties": [
      ...
    ]
  }
]
