Example template

This page provides a complete example of an element template that demonstrates how to define user-editable fields and their mapping to BPMN 2.0 XML and Camunda extension elements.

REST connector template

Let us consider the following example that defines a template for invoking a REST API via a service task:

{
  "$schema": "https://unpkg.com/@camunda/zeebe-element-templates-json-schema/resources/schema.json",
  "name": "REST connector",
  "id": "io.camunda.examples.RestConnector",
  "description": "A REST API invocation task.",
  "appliesTo": ["bpmn:ServiceTask"],
  "properties": [
    {
      "type": "Hidden",
      "value": "http",
      "binding": {
        "type": "zeebe:taskDefinition",
        "property": "type"
      }
    },
    {
      "label": "REST Endpoint URL",
      "description": "Specify the url of the REST API to talk to.",
      "type": "String",
      "binding": {
        "type": "zeebe:taskHeader",
        "key": "url"
      },
      "constraints": {
        "notEmpty": true,
        "pattern": {
          "value": "^https?://.*",
          "message": "Must be http(s) URL."
        }
      }
    },
    {
      "label": "REST Method",
      "description": "Specify the HTTP method to use.",
      "type": "Dropdown",
      "value": "get",
      "choices": [
        { "name": "GET", "value": "get" },
        { "name": "POST", "value": "post" },
        { "name": "PATCH", "value": "patch" },
        { "name": "DELETE", "value": "delete" }
      ],
      "binding": {
        "type": "zeebe:taskHeader",
        "key": "method"
      }
    },
    {
      "label": "Request Body",
      "description": "Data to send to the endpoint.",
      "value": "",
      "type": "String",
      "optional": true,
      "binding": {
        "type": "zeebe:input",
        "name": "body"
      }
    },
    {
      "label": "Result Variable",
      "description": "Name of variable to store the response data in.",
      "value": "response",
      "type": "String",
      "optional": true,
      "binding": {
        "type": "zeebe:output",
        "source": "= body"
      }
    }
  ]
}

How the example works

The example defines five custom fields, each mapped to different technical properties:

• Task type: The value http is mapped to the type property of a zeebe:taskDefinition element in BPMN 2.0 XML. This field is hidden from users since it's a technical requirement.
• REST Endpoint URL: Mapped to a task header with the key url. This field includes validation to ensure it's a valid HTTP(S) URL.
• REST Method: Mapped to a task header with the key method. Uses a dropdown to provide predefined HTTP method options.
• Request Body: Mapped to a local variable via an input parameter named body. This field is optional, so it won't appear in the XML if left empty.
• Result Variable: Mapped into a process variable via an output parameter. The response data will be stored in the specified variable name.

Visual result

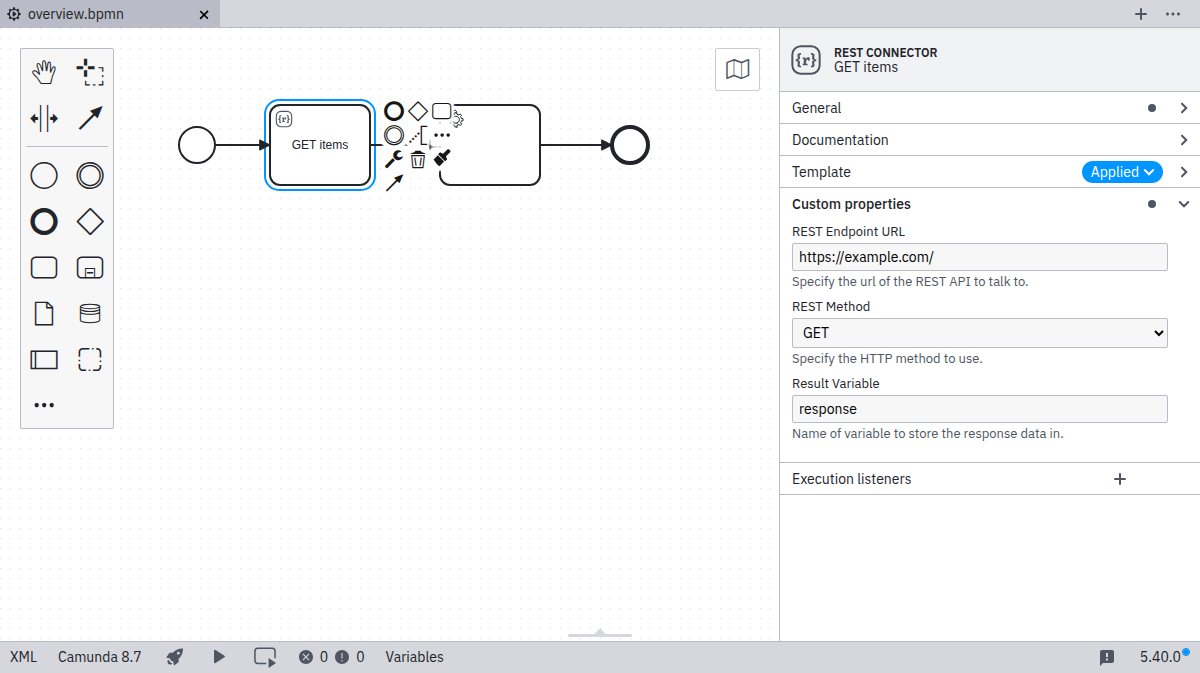

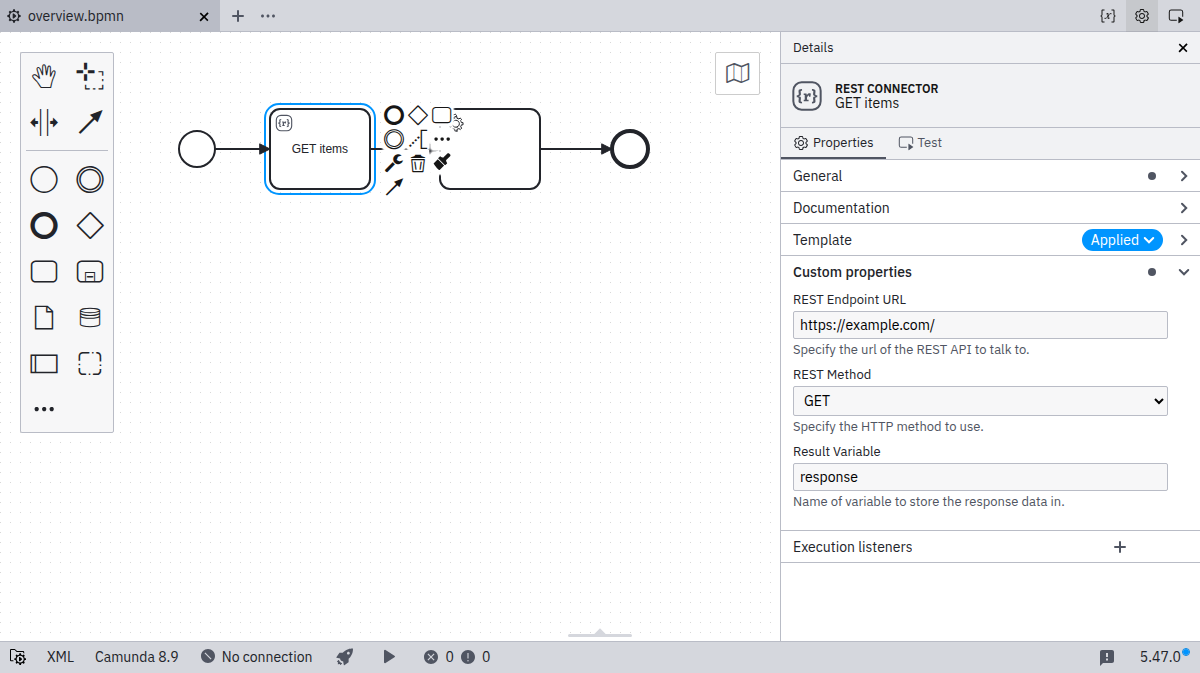

The task type is hidden to the user, as it is a technical implementation detail. The other properties specified in the template can be edited through the properties panel after the user has applied the template as shown in the following screenshot:

Key concepts demonstrated

This example showcases several important template features:

• Hidden properties: Setting technical values that users shouldn't modify.
• Input validation: Using constraints to ensure valid URLs.
• Dropdown choices: Providing predefined options for user selection.
• Optional bindings: Fields that don't persist empty values in the XML.
• Variable mapping: How to map data between the process and external systems.

You can use this example as a starting point for creating your own element templates.
