Deploy your first diagram

Desktop Modeler can directly deploy diagrams and start process instances in Camunda 8. Follow the steps below to deploy a diagram to Camunda 8 SaaS. To deploy to a local installation, visit the Camunda 8 Self-Managed guide.

  1. Click the deployment icon:

deployment icon

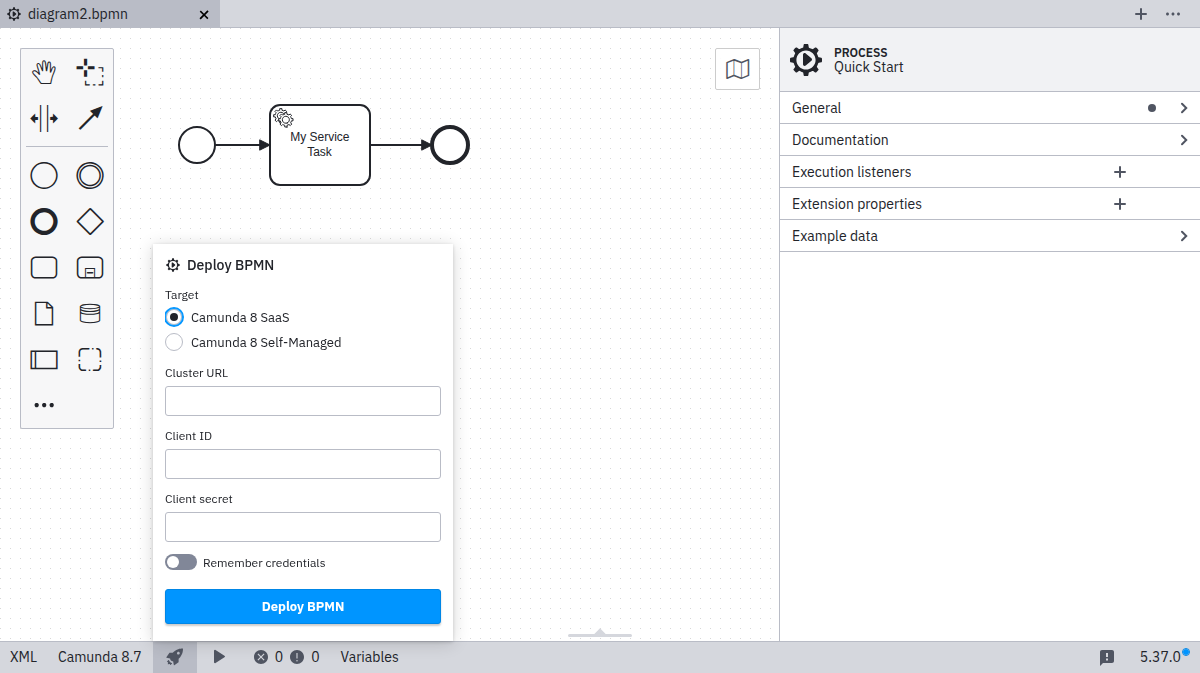

  1. Click Camunda 8 SaaS:

deployment configuration

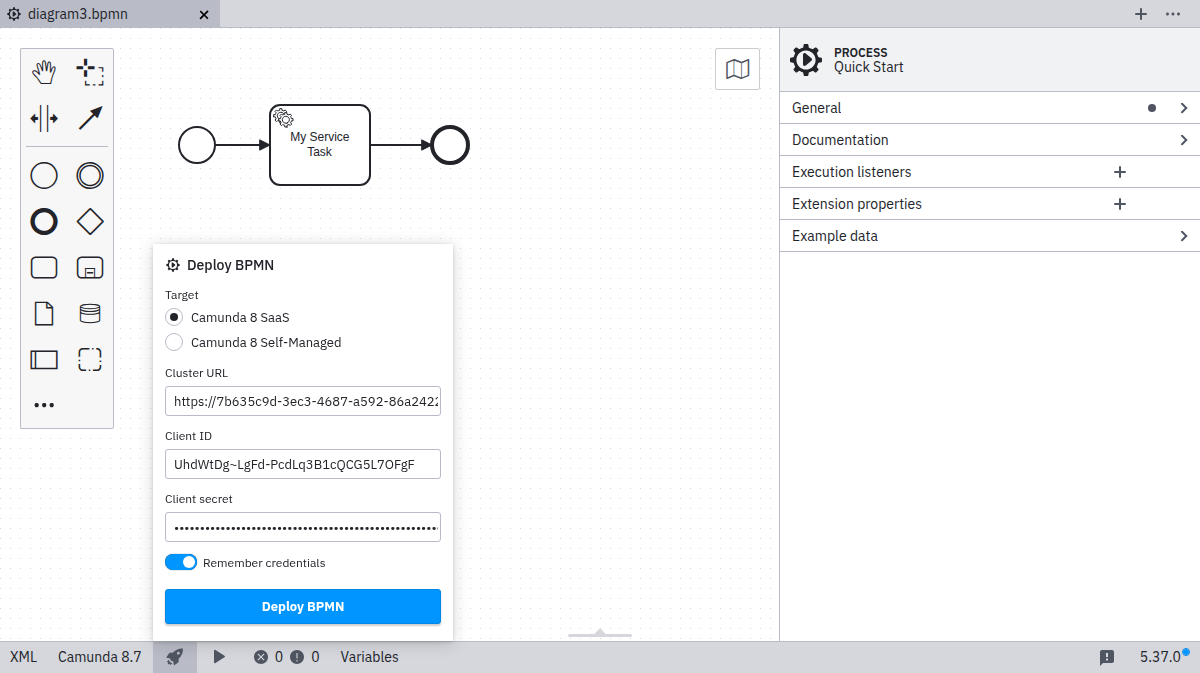

  1. Input the Cluster URL and the credentials (Client ID, Client Secret) of your API client:

deployment via Camunda 8

  1. Toggle Remember credentials to locally store the connection information.

  2. Click Deploy to perform the actual deployment.

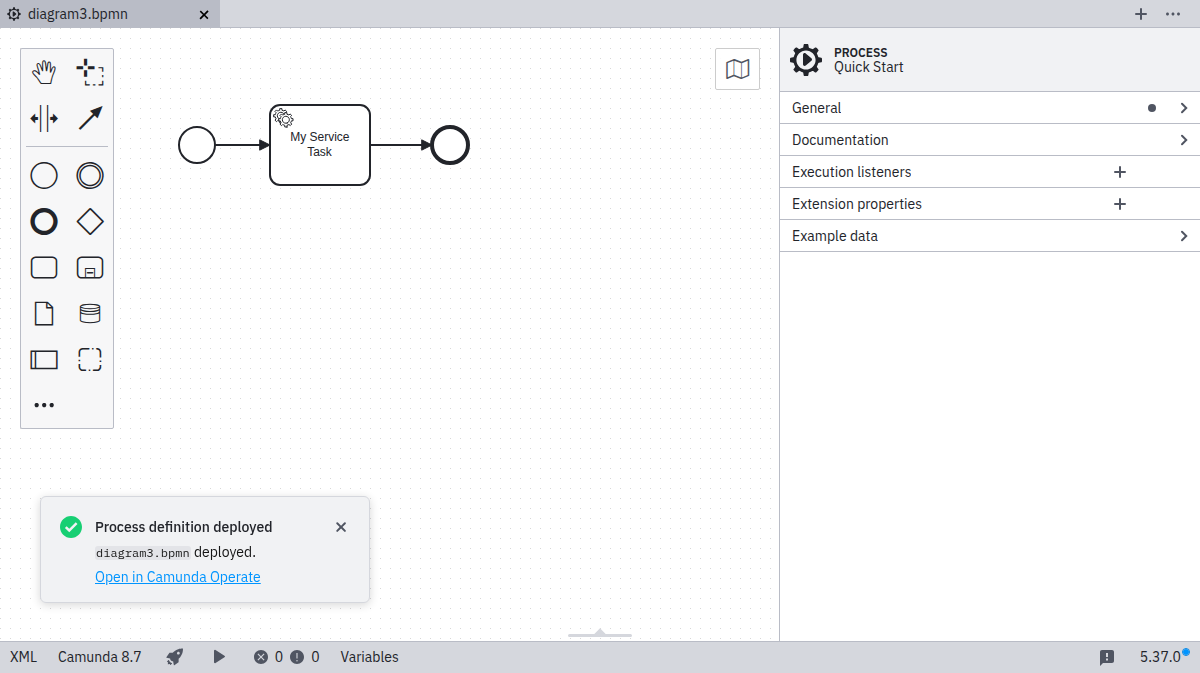

deployment successful

note

As a next step, start a new process instance.
