Naming technically relevant IDs

For executable flows, properly name all relevant technical element IDs in your BPMN diagrams.

note

Keep technical IDs and names short enough for the target environment. Most user-defined BPMN and DMN IDs, names, deployed resource names, and form IDs support up to 32,768 characters with Elasticsearch/OpenSearch-backed storage and 256 characters with RDBMS-backed storage. If you use RDBMS, or might migrate to it later, keep these values comfortably within the 256-character limit.

Focus on process, activity, message, and error IDs, but also consider events as well as gateways and their sequence flows that carry conditional expressions. Those elements can show up regularly (e.g. in your logs) and it makes things easier if you can interpret their meaning.

Using naming conventions for BPMN IDs

Define developer-friendly and business-relevant IDs for the process itself, as well as all activities, messages, and errors. Also consider events, gateways, and the sequence flows that carry conditional expressions. Even though IDs are just identifiers, keep in mind that they will show up regularly on the technical level. Meaningful IDs will help a lot.

One case where an ID is more than an identifier is an element inside an ad-hoc sub-process that an AI agent uses as a tool. There, the ID is the tool name passed to the model, and it directly affects which tool the model selects, so describe what the tool does rather than applying the type prefixes below. See write a tool name and description for more details.

Examine the IDs shown in the following example:

The following table provides you with a guideline that we would use in a context where developers are comfortable with Java and PascalCase naming style. You may adapt these suggestions to typical naming conventions used in your programming context.

		XML Attribute	Prefix or Suffix	Resulting ID
1	Tweet Approval	process/@id	Process	TweetApprovalProcess
2	New tweet written	startEvent/@id	StartEvent_	StartEvent_NewTweetWritten
		message/@id	Message_	Message_NewTweetWritten
		message/@name	Msg_	Msg_NewTweetWritten
3	Review tweet	userTask/@id	Task_	Task_ReviewTweet
4	Tweet approved?	exclusiveGateway/@id	Gateway_	Gateway_TweetApproved
5	No	sequenceFlow/@id	SequenceFlow_	SequenceFlow_TweetApprovedNo
6	Tweet duplicated	boundaryEvent/@id	BoundaryEvent_	BoundaryEvent_TweetDuplicated
		error/@id	Error_	Error_TweetDuplicated
		error/@errorCode	Err_	Err_TweetDuplicated
7	Tweet published	EndEvent_/@id	EndEvent_	EndEvent_TweetPublished

Editing IDs

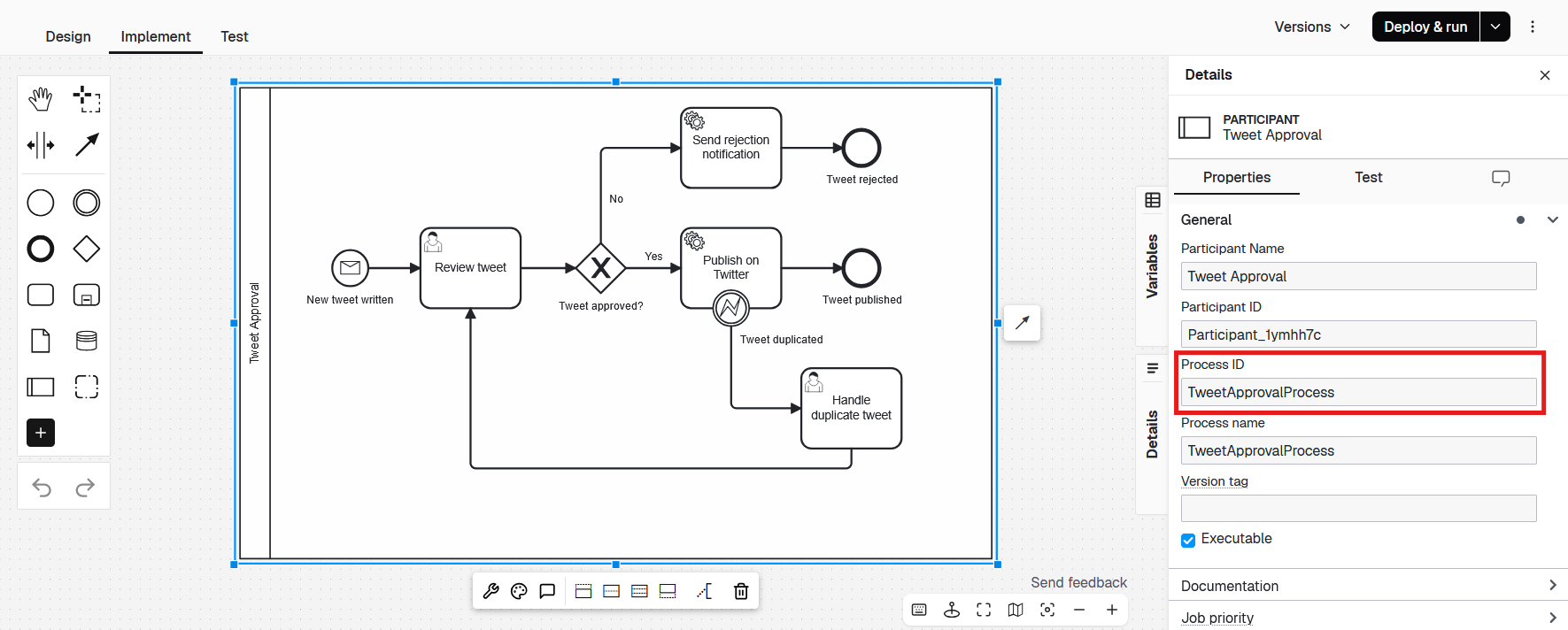

Camunda recommends using the properties panel on the right side of the modeling interface in Camunda Hub or Desktop Modeler to edit technical identifiers and change them according to your naming conventions. For example, this is shown here for the process ID:

We strongly recommend you do not edit existing identifiers directly in the XML, as it might accidentally corrupt your BPMN file. You must keep the identifiers in the section about the graphical layout (so called "DI" for diagram interchange) further down in sync with the execution semantics at the top of the XML.

However, we include an XML example of all those identifiers mentioned for illustration:

<process id="TweetApprovalProcess" name="Tweet Approval"> <!--1-->
  <StartEvent_ id="StartEvent_NewTweetWritten" name="New tweet written"> <!--2-->
    <Message_EventDefinition Message_Ref="Message_NewTweetWritten" />
  </StartEvent_>
  <UserTask_ id="UserTask_ReviewTweet" name="Review tweet"></UserTask_> <!--3-->
  <Gateway_ id="Gateway_TweetApproved" name="Tweet approved?"> <!--4-->
  </Gateway_>
  <SequenceFlow_ id="SequenceFlow_TweetApprovedNo" name="No"> <!--5-->
  </SequenceFlow_>
  <BoundaryEvent_ id="BoundaryEvent_TweetDuplicated" name="Tweet duplicated"> <!--6-->
    <Error_EventDefinition Error_Ref="Error_TweetDuplicated" />
  </BoundaryEvent_>
  <EndEvent_ id="EndEvent_TweetPublished" name="Tweet published"> <!--7-->
  </EndEvent_>
</process>

<Message_ id="Message_NewTweetWritten" name="Msg_NewTweetWritten" /> <!--2-->
<Error_ id="Error_TweetDuplicated" name="Tweet duplicated" Error_Code="Err_TweetDuplicated" /> <!--6-->
...
 <bpmndi:BPMNDiagram id="BPMNDiagram_1">
    <bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="TweetApprovalProcess">
      <bpmndi:BPMNShape id="_BPMNShape_StartEvent__1" bpmnElement="StartEvent_NewTweetWritten"> <!--8-->
        <dc:Bounds x="100" y="50" width="36" height="36" />
      </bpmndi:BPMNShape>

8

Elements in the diagram interchange section (DI) reference identifiers from above; you have to adjust them accordingly. This happens automatically in Camunda Hub and Desktop Modeler.

Changing IDs can potentially break your tests or even process logic if done at a late stage of development. Therefore, consider using meaningful IDs right from the beginning and perform the renaming as part of the modeling.

Aligning the BPMN file name with the process ID

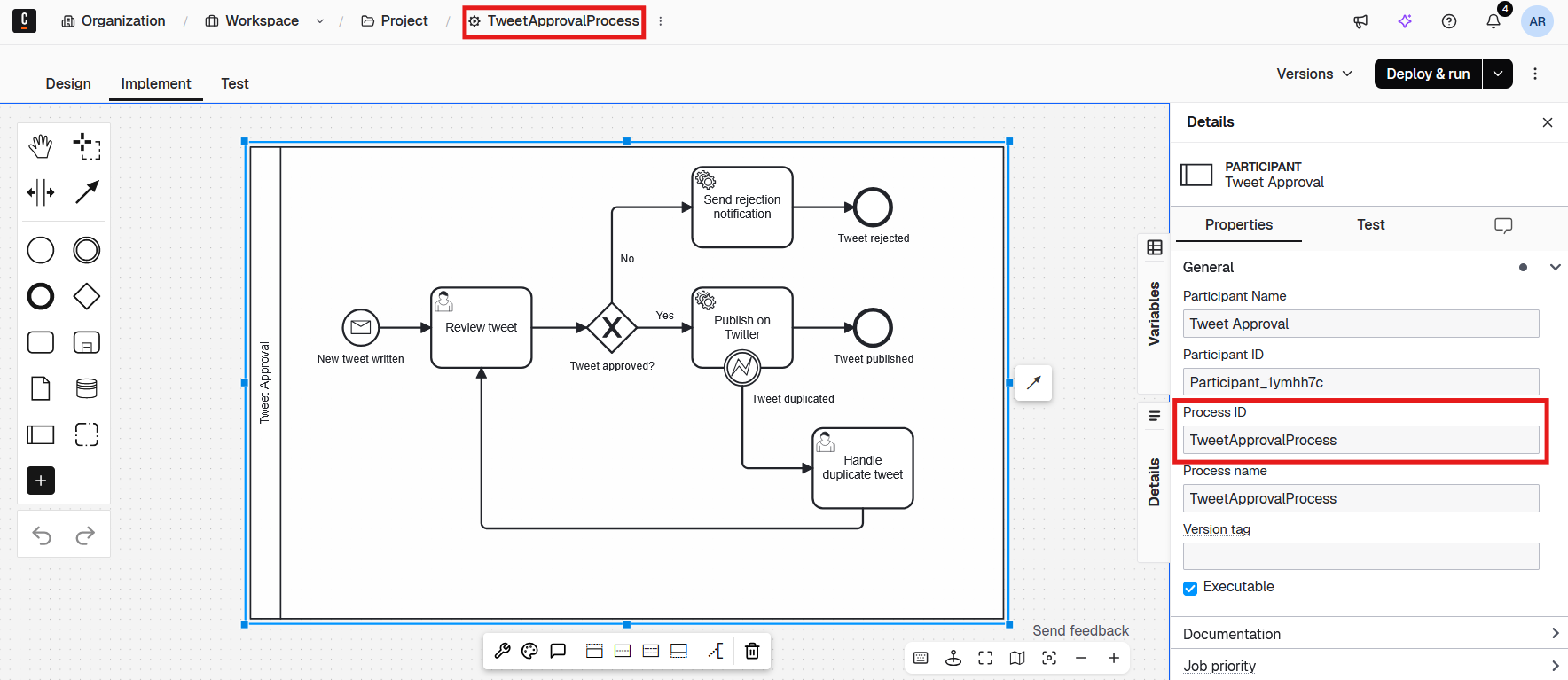

It is a good practice to align the file name of your BPMN models with the process ID of the executable process that is inside the file.

Generating ID constants classes

If you have lots of process, case, and decision definitions with lots of IDs, consider generating constant classes (e.g. via XSLT) directly from your BPMN or DMN XML files. For example, this can be used for testing.

Using a modeler plugin to generate meaningful ids

You can use this modeler plugin community extension to automatically convert your IDs to comply with our best practices. Of course, you could also use this as a basis to create your own modeler plugin to generate IDs that follow your custom naming conventions. Or, you could implement a similar plugin to implement checks if all relavant IDs follow your naming conventions.
