Element templates at scale

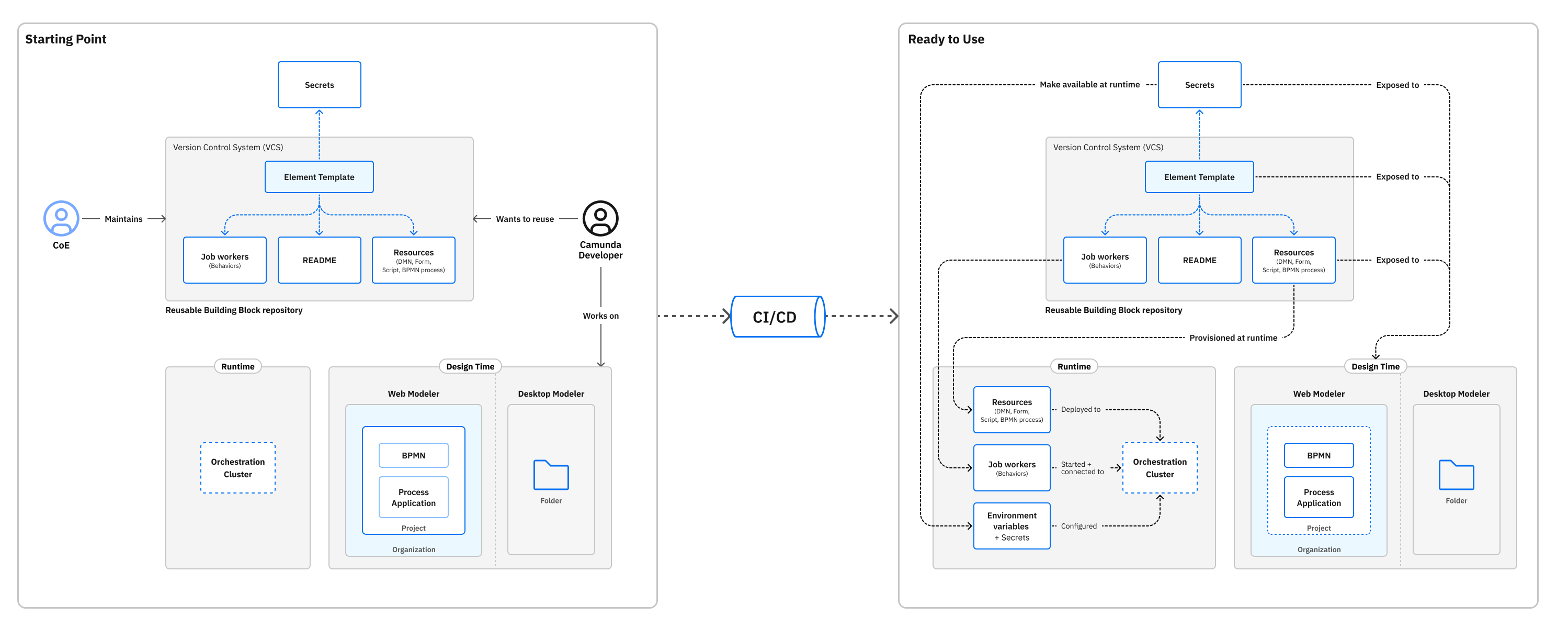

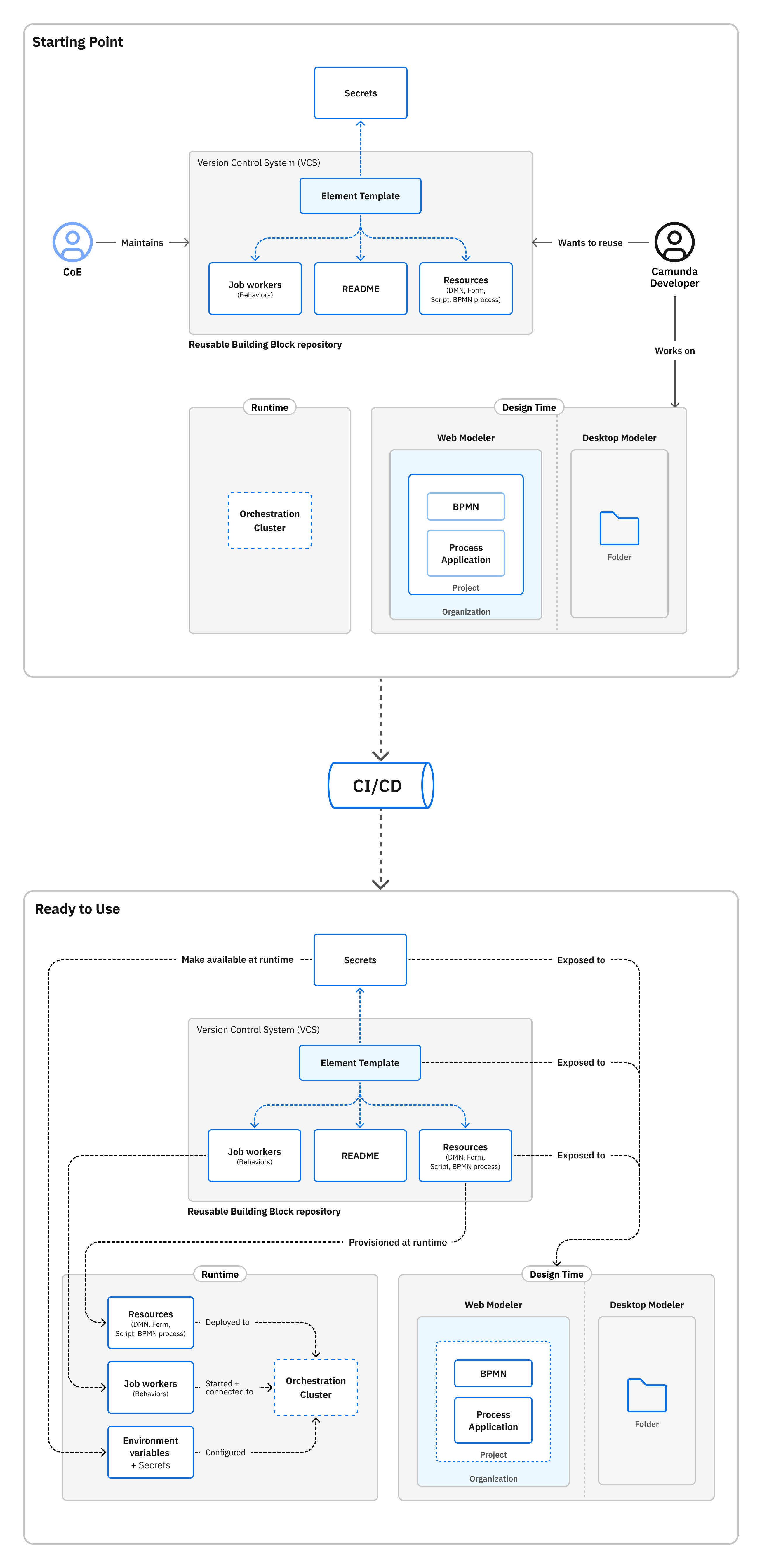

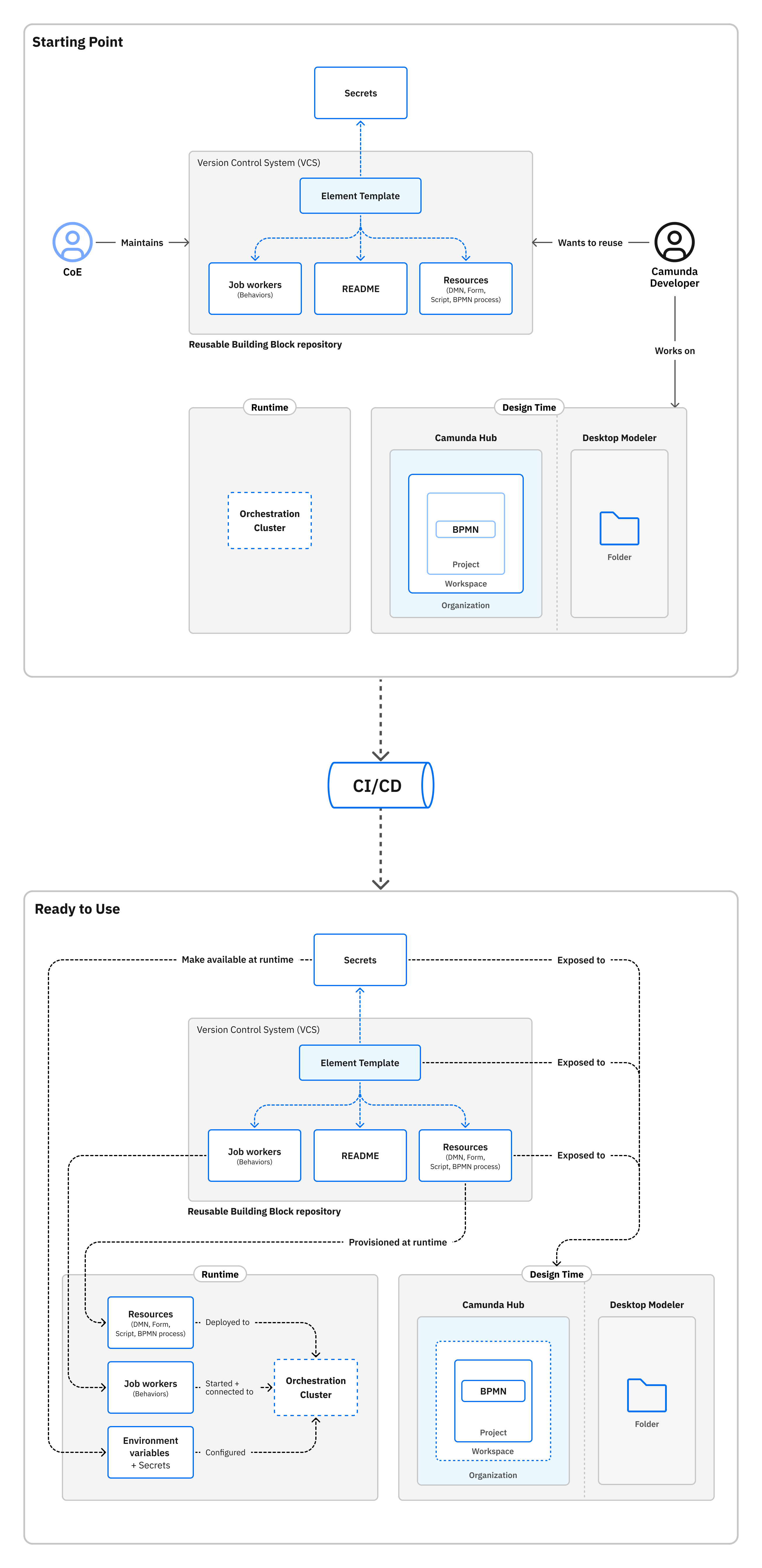

To effectively manage large libraries of reusable building blocks (element templates), you can create a pipeline that:

• Provisions the dependencies of element templates to required clusters.
• Makes templates available at design time to multiple Web Modeler shared projects within an organization.

This guide covers conceptually what your pipeline needs to do, from obtaining credentials to runtime provisioning and template syncing.

Prerequisites

Before building your pipeline, ensure you have the following:

Prerequisite	Purpose
VCS repository	Store all element templates
System of record	Track which templates are required in each cluster and which projects need them
Web Modeler API token	Access Web Modeler programmatically
Orchestration Cluster API client	Provision dependencies to clusters

For simplicity, this guide assumes:

• One organization
• One cluster
• One Web Modeler project
• A pipeline handling runtime provisioning and template syncing

Runtime provisioning

Secrets

Secrets are required to authenticate the pipeline with your cluster and Web Modeler:

• SaaS: Use the Administration API or Console UI to configure secrets.
• Self-Managed/local development: Configure secrets outside the pipeline. See connector secrets.

Job Workers

As part of the pipeline, you may spin up a service to connect to the cluster, or handle it in a separate pipeline.

Recommended resources:

• Outbound connectors vs. job workers
• Host custom connectors

Other dependencies

The following dependency types are provisioned at runtime using the Orchestration Cluster API:

Dependency	Purpose
Camunda forms	Used in user tasks
RPA scripts	Used in service tasks
BPMN processes	Used in call activities
DMN decisions	Used in business rule tasks

To deploy dependencies, send a POST request with the files. This works for SaaS, self-managed, and local development.

When referencing a dependency such as a form, Camunda recommends using a versionTag as your binding type. This option ensures the right version of the target resource is always used.

Making templates available in Web Modeler

The pipeline can make templates available in Web Modeler using the Web Modeler API:

1. Get project metadata: Retrieve the project ID to know which content is available. This allows the pipeline to translate repository changes into CRUD operations.

POST /api/v1/projects/search

{
  "filter": {
    "name": "(PROJECT NAME)"
  },
  "page": 0,
  "size": 50
}

Pagination is enforced for all search endpoints. Ensure you retrieve all relevant pages. Alternatively, a separate system of record can maintain project IDs.

2. Get file metadata: With the project ID, retrieve a list of files and metadata to check which repository files need to be created or updated.

{
  "filter": {
    "projectId": "(PROJECT ID)"
  },
  "page": 0,
  "size": 50
}

3. Create or update files: For each repository file, execute the appropriate request based on whether it needs to be created or updated.
4. Publish versions: For each file, determine if a new version is needed and publish it to the project using the Versions resource. This makes the templates available to BPMN diagrams inside the project.

Making templates available in Desktop Modeler

To set up your local environment:

• Access the VCS repository containing the templates.
• Choose how to configure them depending on your needs. If your templates are reused across multiple projects, configuring them globally will make it easier to maintain. For project-specific templates, consider making them available only for that project to avoid exposing templates to projects that should not be using them.

note

If you are the template creator/maintainer, include a README file in your repository that lists the requirements for using your templates -- for example, which dependencies need to be provisioned in advance.

Next steps

Refer to Integrate Web Modeler in CI/CD for additional CI/CD-related guidance.
